IMU06-tactical General Specification

IMU06-tactical General Specification

Accelerometer

Range

�5g

3dB Bandwidth

40Hz

Gyro

Range

�480�/s

3dB Bandwidth

100Hz

DAC

Maximum current

10mA

Accelerations

1g/v, centred at 0v

Gyroscopes

100degrees/s, centred at 0v

CAN

Maximum baud rate

1Mb/s

Data rate

Configurable up to 100Hz

Identifiers

Configurable addresses, 11 or 29bit

RS232

Baud rate

115200

Data rate

Configurable up to 100Hz

Data Format

Race Technology standard messages

General

Power

8-15V dc

Outputs

RS232,CAN,Analogue

Configuration

From PC via RS232

Case

Anodised Aluminium

Case

Anodised Aluminium

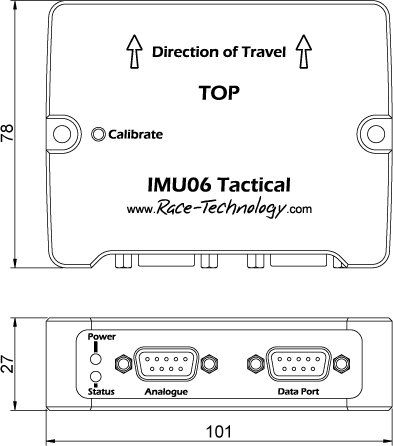

Dimensions

101 x 78 x 27mm

Mass

280g

Fixing method

� 5mm holes for M4 shoulder screws

IP Rating

IP50

Operating Temperature

-20 to +65˚C
