CANInterface / PinConnections

Pin connections

Serial Data In Connector

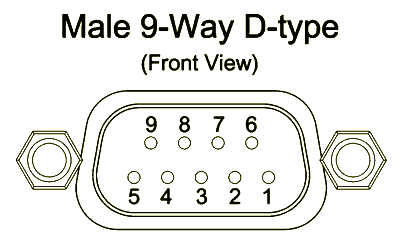

9 Way Male D-Type

PIN 2 RS232 Input

PIN 3 RS232 Pass through

PIN 5 Ground

PIN 7 Power

Serial Data Out Connector

9 Way Female D-Type

PIN 2 RS232 Output

PIN 3 RS232 Pass through

PIN 5 Ground

PIN 7 Power

CAN Connector

9 Way Male D-Type

PIN 2 CAN Low

PIN 7 CAN High

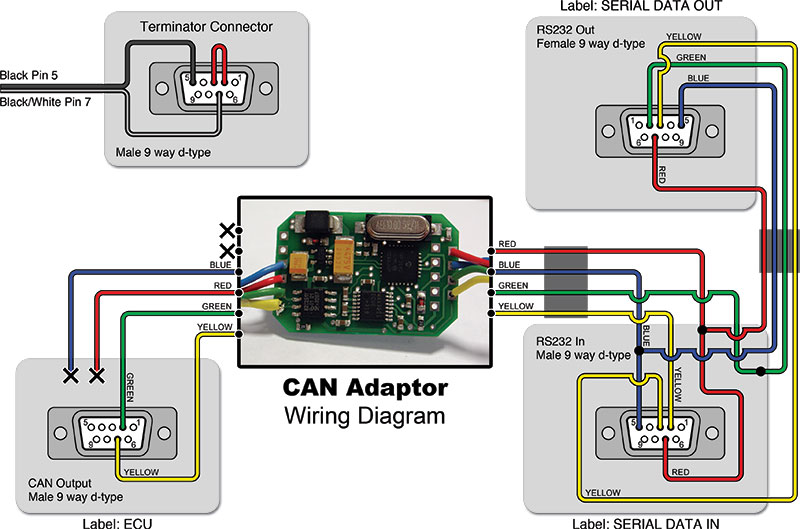

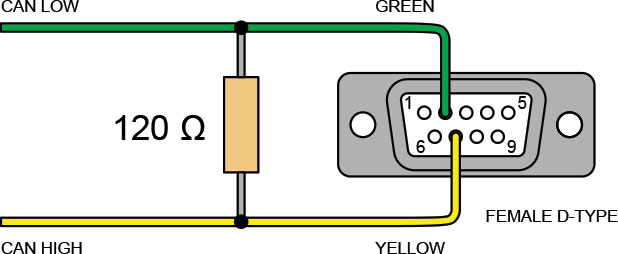

To connect to the CAN output of the ECU we recommend making up the following cable:

Note: We have included the termination resistor in this cable, for more information on can termination visit here
