RTCloud / SettingsPage

Settings

Using the settings page you can configure the following:

Display Settings
Timezone
Live Data Settings
Alarms
Lap marker source
Amazon S3 Settings
System Notifications
RUN table columns

Display Settings

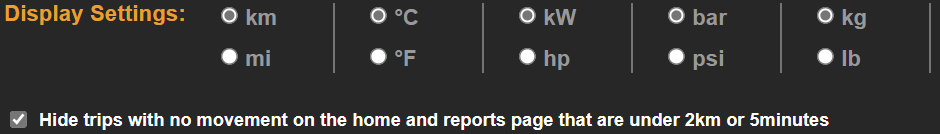

Display settings section allows you to configure the following:

Units (Distance, Temperature, Power, Pressure, and Mass)
Show/Hide trips with no movement from Run list and reports that are under 2km or under 5 minutes.

Timezone

This setting is used to configure the time and date values in the notifications.

Live Data Settings

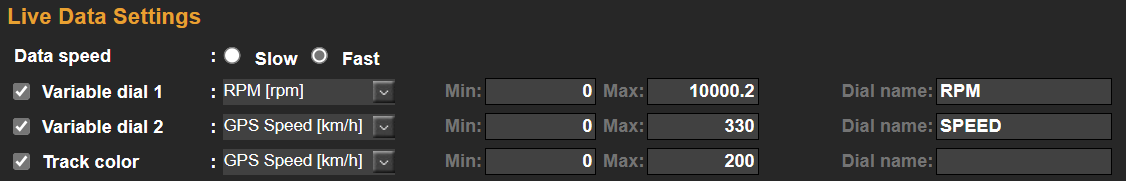

This section allows you to configure the variables to show on the Dials on the Live data page.

Alarms

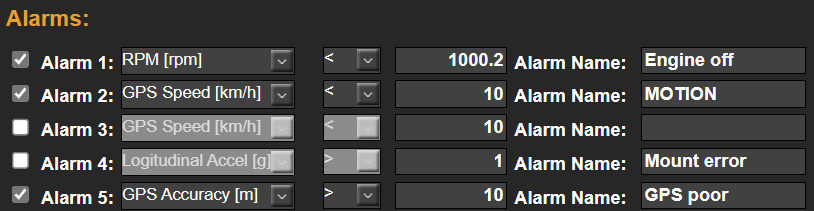

This section allows you to configure the alarms (currently up to 5 alarms can be configured)

Lap marker source

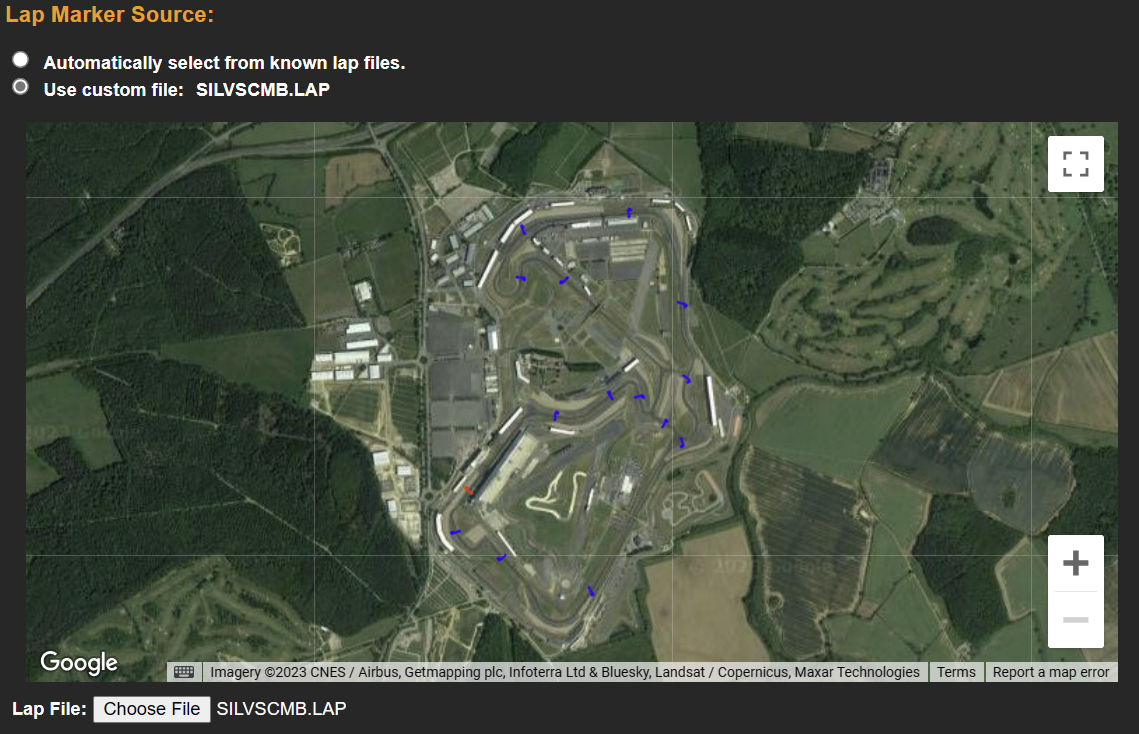

This section is used to select a lap file to be used with the run data.

Amazon S3 Settings

System Notifications

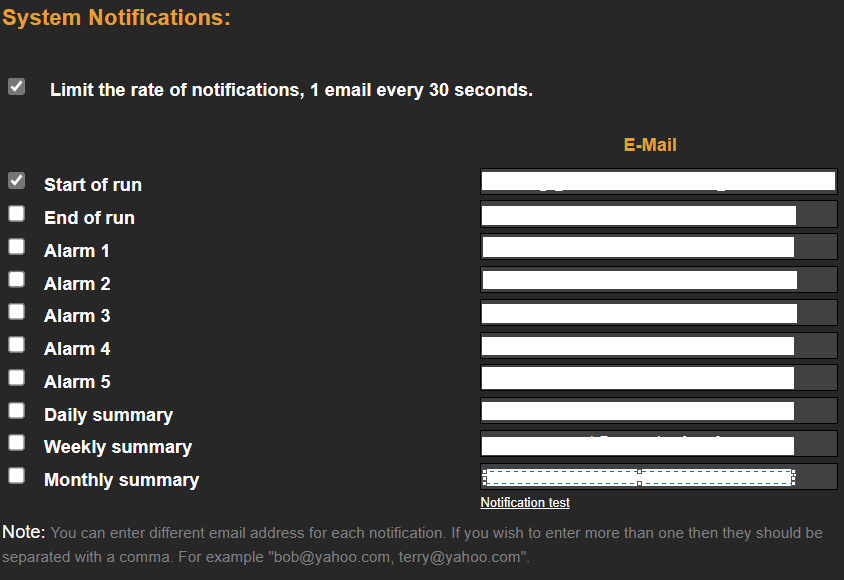

This section is used to configure the system notifications based on start/end of runs and alarms triggered. You can enter different email and mobile phone numbers for each notification.

RUN table columns

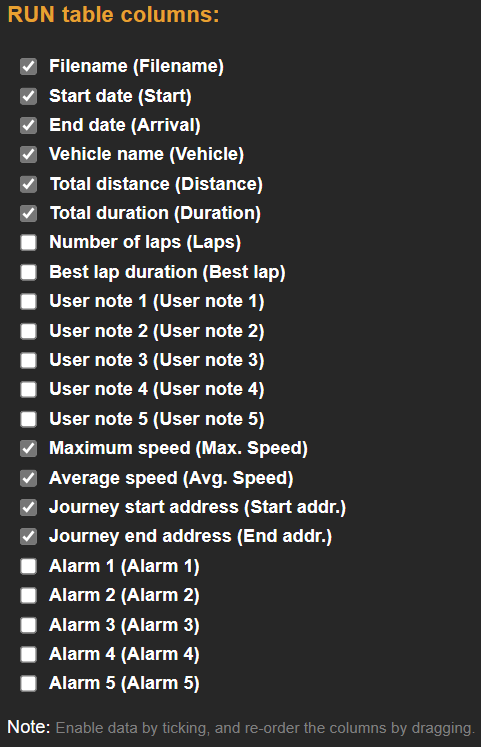

This section is used to enable/Disable table columns displayed on the run data table on the Home tab and to rearrange column order by dragging and dropping the columns.
