Reading Configuration from DASH4PRO FD

You will require a special connector to connect the DASH4PRO FD to the PC (not shipped with the DASH4PRO FD). For more information please contact Race Technology.

To transfer the configuration from the DASH4PRO FD unit and load it to the software, you must first connect the device to computer through the COM port. Make sure to switch off the device whilst connecting.

Once the device is connected, turn on the device.

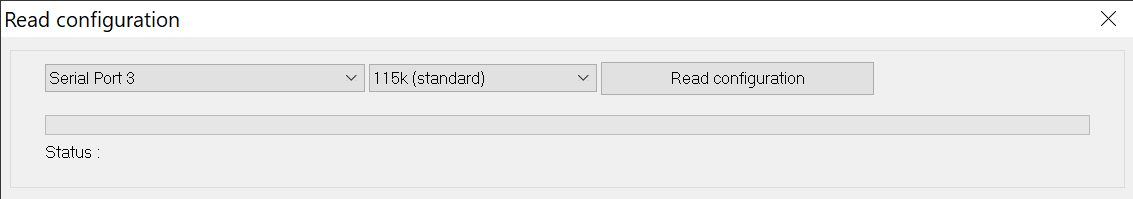

Then click on the '''Read configuration" command in the File menu or use the toolbar button. The following window will then appear:

Select the connected port, press the Read configuration button to transfer the configuration from the DASH4PRO FD unit and load it to the software.
