How do I load in data from a DL1/DL2/AX22?

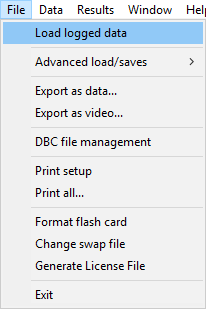

Step 1: Once you have entered the analysis software, go to the "file" button in the top, left hand corner of the screen. Then select the "Load Logged Data" menu item.

Step 2: You will now be able to select the place in which the logged data is stored -you can load data from:

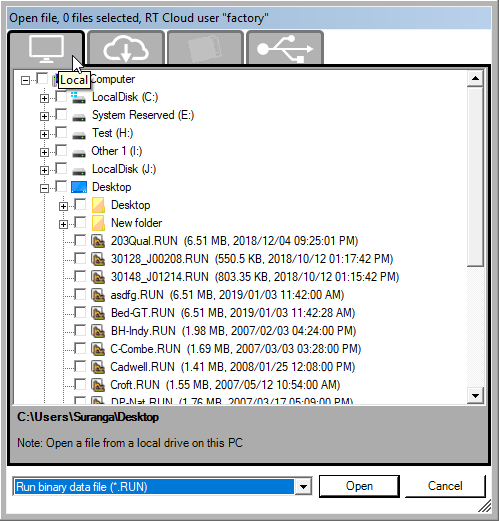

1.your local PC,

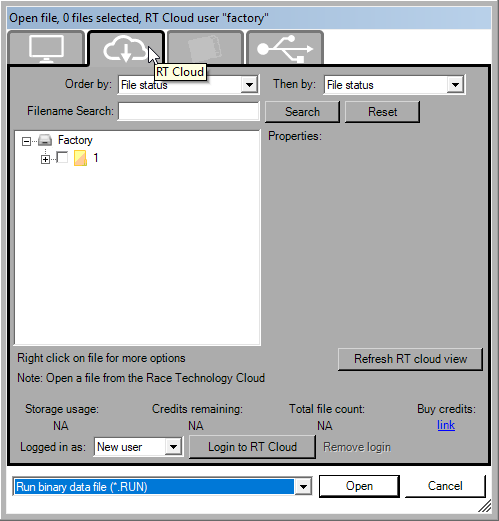

2.the cloud,

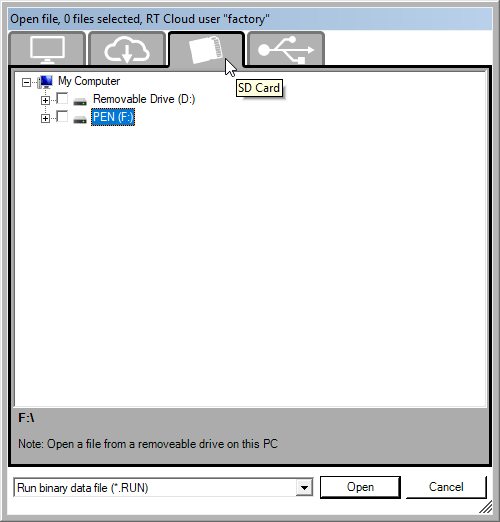

3.a Compact Flash Card,

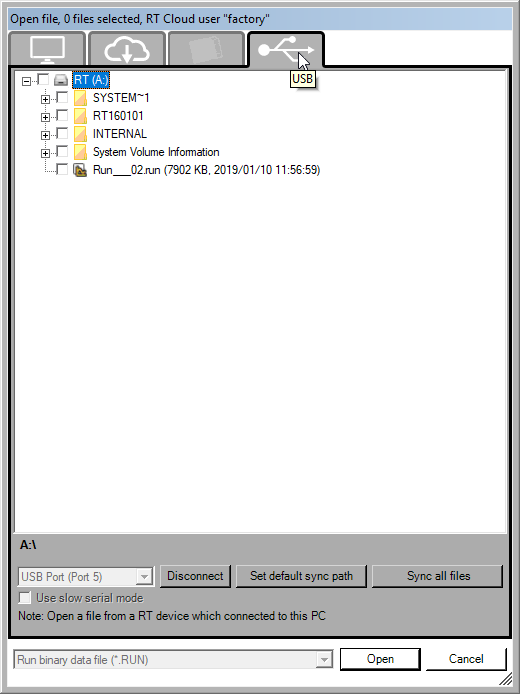

4. or a RT device connected to the PC via USB.

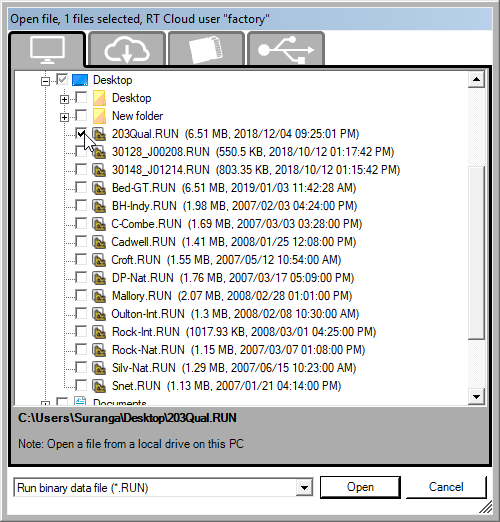

Step 3: Select the run that you wish to analyse and click open.

Step 4: Once the run has been successfully loaded, a symbol will appear in the top left hand corner of the screen (as shown below).

The screen will now remain blank until a form of analysis (e.g. a track map) has been selected.
