ECUType / E-RACECAN

E-RACE CAN


Compatibility


  • E_Race


Configuration


'+Configuration is not required.


Connection

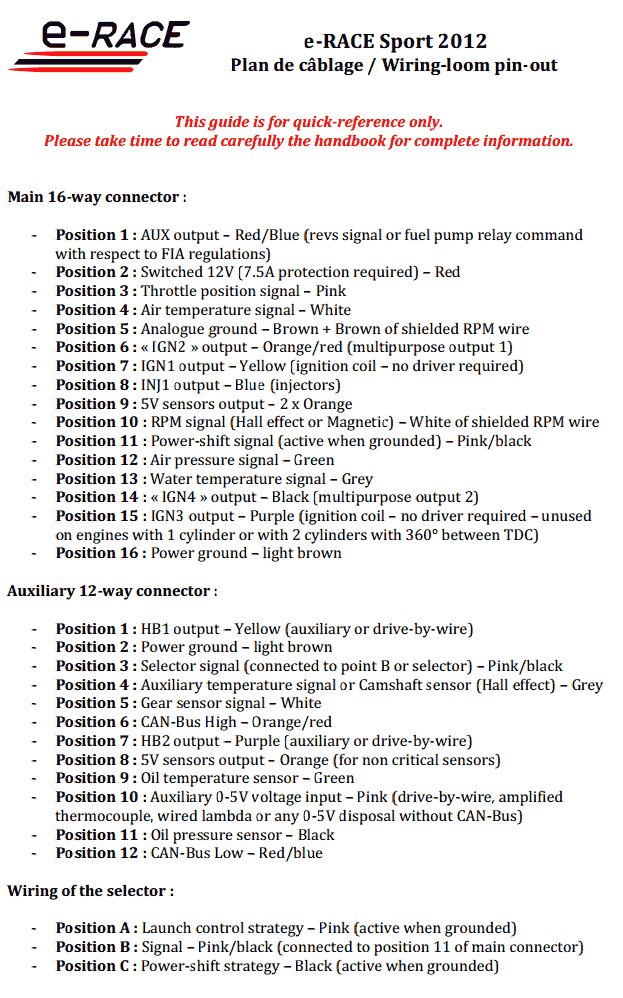

This ECU should be connected via CAN connections:

Auxiliary 12 way connector

  • Connect Race Technology CAN high to Position 6 Orange/red wire.
  • Connect to Race Technology CAN low to Position 12 Red/blue wire.


Data Channel listing


ECU Message Name Race Technology Data Channel Resolution of Data
Engine RPM RPM (Engine RPM) 1 RPM
MAP Boost pressure (pressure 5) 1mB
Coolant_Temp Coolant temp (temperature 8) 1C
Oil_Pressure Oil pressure (pressure 2) 0.1bar
Engine_Oil_Temp Oil temp (temperature 9) 1C
Gear Auxiliary 1 (aux 26) 1

Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
