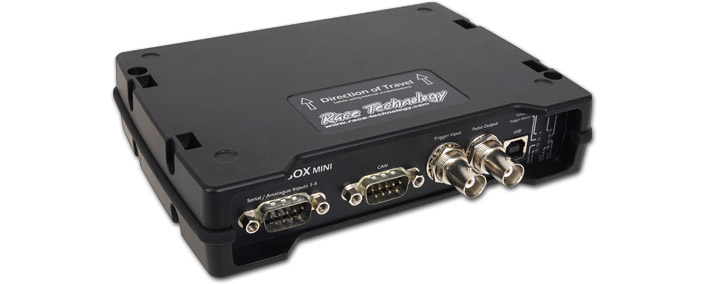

SPEEDBOX MINI

The SPEEDBOX MINI is very similar to the standard SPEEDBOX, but features the following differences:

The power supply input is 9-15V rather than the higher 9-30V voltage range of the standard unit

There are no analogue inputs or outputs as standard, 4 analogue inputs available as an option

The unit is much smaller, with the complete unit measuring only 160 x 131 (including un-mated SMA/BNC connectors) x 27mm

Lower cost than a standard SPEEDBOX unit

For all other technical information regarding the SPEEDBOX MINI, please refer to the SPEEDBOX information.
