Porsche 996 Bosch 7.8.1
Car models:
- 996 MK2 GT2
- 996 MK2 GT3
- 996 MK2 GT3 RS
- 996 MK2 turbo
- 996 MK2 turbo s
- 996 MK2 Carrera 3.6 Coupé – Cabrio – Targo
- 996 MK2 Carrera S 3.6 Coupé – Cabrio
- 996 MK2 Carrera 4 3.6 Couplé – Cabrio
- 996 MK2 Carrera 4S 3.6 Couplé – Cabrio – Targa
ECU Configuration
No ECU configuration is required.
Connection information
- There is no plug and play solution for this car and it will require a connection being added onto the CAN high and low wires.
- Locate the CAN high and low wires from referring to the information below and add an inline connector to the wires or cut and solder a wire and apply insulation over the connection
- Refer to the Race Technology product manual for CAN high and CAN low
Option 1 – ECU

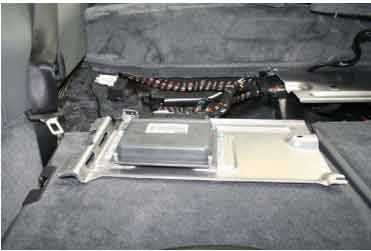

The ECU is behind the rear seats:

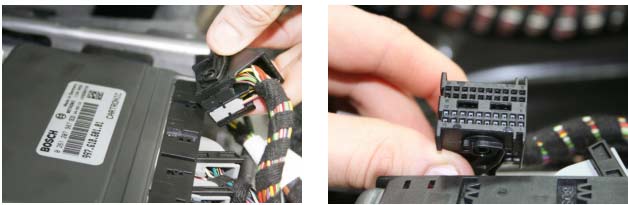

Disconnect the connector below and locate pins 36 light blue/white and 37 grey/white.
- Connect Race Technology CAN high to blue/white
- Connect Race Technology CAN low to grey/white
Option 2 – DASH connector
This option is slightly more tricky then option 1 as you need to remove the DASH. If you already have the DASH removed then it maybe a better option depending on where the Race Technology equipment if installed.
Remove the DASH so you can see the green connector below:
Carefully remove the Green hood of the connector:
Locate pins A15 light blue/white wire and A31 grey/white wire:
- Connect Race Technology CAN high to blue/white
- Connect Race Technology CAN low to grey/white
Channel listings
ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
RPM
| Engine RPM
| RPM
| VAR_0010
| 1 RPM
|
Throttle position
| aux 1
| Throttle position
| VAR_2000
| 0.40%
|
Steering angle
| angle 3
| Steering angle
| VAR_3002
| 0.4 degrees
|
Wheel speed rear left
| aux 26
| Auxiliary 1
| VAR_2025
| 0.1 km/h
|
Wheel speed Front left
| aux 27
| Auxiliary 2
| VAR_2026
| 0.1 km/h
|
Wheel speed rear right
| aux 28
| Auxiliary 3
| VAR_2027
| 0.1 km/h
|
Wheel speed front right
| aux 29
| Auxiliary 4
| VAR_2028
| 0.1 km/h
|
Water temp
| temperature 8
| Water temp
| VAR_1007
| 1c
|
charge temp
| temperature 6
| Inlet post intercooler 1
| VAR_1005
| 1c
|
Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
