Vi-PEC ECUs
Compatible with ViPEC V44, V88, i-series and Link G4,G4+ ECUs
The ECU with firmware version 4.2.0 onwards must be set up to output the required data at 57.6 kbaud, the DataStream mode also needs to be set to "off". After these settings have been configured turn the power off the ECU and back on again. Changes to baud rate and DataStream only take effect if this is done.
You will also need a cable from the ECU manufacturer in order to connect the Race Technology interface to the data output of the ECU.

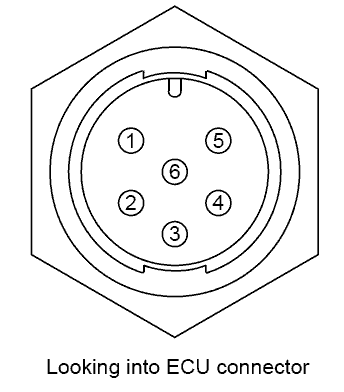

| Pin
| Colour
| Function
|
| 1
| Brown
| Ground
|
| 2
| Blue
| N/A
|
| 3
| White
| CAN H
|
| 4
| Green
| CAN L
|
| 5
| Yellow
| ECU RS232 TX
|
| 6
| Gray
| ECU RS232 RX
|
The following configuration is used with the ECU interface:
| ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| RPM
| Engine RPM
| RPM
| VAR_0010
| 25 RPM
|
| Manifold abs. Pressure
| Pressure 5
| Boost Pressure
| VAR_3504
| 1 mBar
|
| BARO Pressure
| Pressure 2
| Oil Pressure
| VAR_3501
| 1 mBar
|
| Throttle Position
| Aux 1
| Throttle Position
| VAR_2000
| 0.1%
|
| IN Duty Cycle
| Aux 6
| Fuel Inj 1 PW
| VAR_2005
| 0.1%
|
| IN Duty Cycle STG
| Aux 7
| Fuel Inj 2 PW
| VAR_2006
| 0.1%
|
| INJ PW
| Measured Time 1
| Fuel Inj 1 PW on
| VAR_2500
| 1 ms
|
| Coolant Temperature
| Temperature 8
| Water Temperature
| VAR_1007
| 0.1°C
|
| Intake Air Temperature
| Temperature 1
| Temperature 1
| VAR_1000
| 0.1°C
|
| Battery Voltage
| Misc 3
| Battery Voltage
| VAR_4002
| 0.01 V
|
| Gear
| Aux 26
| Auxiliary 1
| VAR_2025
| 1
|
| ECU Temperature
| Temperature 16
| ECU Temperature
| VAR_1015
| 0.1°C
|
| Injection Angle
| Angle 1
| Throttle Angle
| VAR_3000
| 0.1°
|
| Ignition Angle
| Angle 2
| Ignition Angle
| VAR_3001
| 0.1°
|
| AN Temp 1
| Temperature 17
| Exhaust 1 Temp
| VAR_1016
| 0.1°C
|
| AN Temp 2
| Temperature 18
| Exhaust 2 Temp
| VAR_1017
| 0.1°C
|
| AN Temp 3
| Temperature 19
| Exhaust 3 Temp
| VAR_1018
| 0.1°C
|
| AN Temp 4
| Temperature 20
| Exhaust 4 Temp
| VAR_1019
| 0.1°C
|
| AN Volt 1
| Analogue Input 1
| Analog 1
| VAR_0200
| 0.01 V
|
| AN Volt 2
| Analogue Input 2
| Analog 2
| VAR_0201
| 0.01 V
|
| AN Volt 3
| Analogue Input 3
| Analog 3
| VAR_0202
| 0.01 V
|
| AN Volt 4
| Analogue Input 4
| Analog 4
| VAR_0203
| 0.01 V
|
| AN Volt 5
| Analogue Input 5
| Analog 5
| VAR_0204
| 0.01 V
|
| AN Volt 6
| Analogue Input 6
| Analog 6
| VAR_0205
| 0.01 V
|
| AN Volt 7
| Analogue Input 7
| Analog 7
| VAR_0206
| 0.01 V
|
| AN Volt 8
| Analogue Input 8
| Analog 8
| VAR_0207
| 0.01 V
|
| AN Volt 9
| Analogue Input 9
| Analog 9
| VAR_0208
| 0.01 V
|
| AN Volt 10
| Analogue Input 10
| Analog 10
| VAR_0209
| 0.01 V
|
| AN Volt 11
| Analogue Input 11
| Analog 11
| VAR_0210
| 0.01 V
|
| Dl 1 Freq
| Frequency 2
| EGR Freq
| VAR_1501
| 0.1
|
| Dl 2 Freq
| Frequency 3
| ISBV Freq
| VAR_1502
| 0.1
|
| Dl 3 Freq
| Frequency 4
| Nitrous Solenoid Freq
| VAR_1503
| 0.1
|
| Dwell Time
| Measured Time 2
| Fuel Inj 2 PW on
| VAR_2501
| 1 ms
|
