Specialist components Tornado/Typhoon
Connections
If no other CAN device is connected to the CAN bus then a 120ohm termination resistor is required between CAN high and CAN low

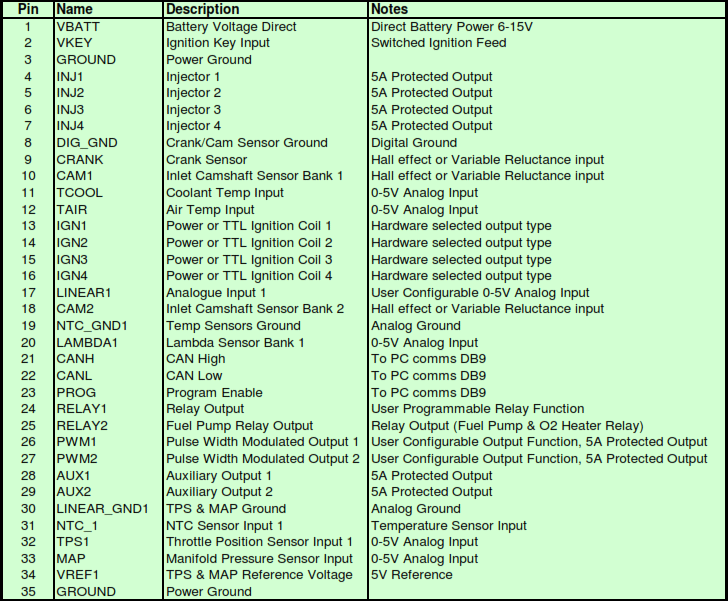

Main ECU connector
Female 9 pin d-type
ECU configuration

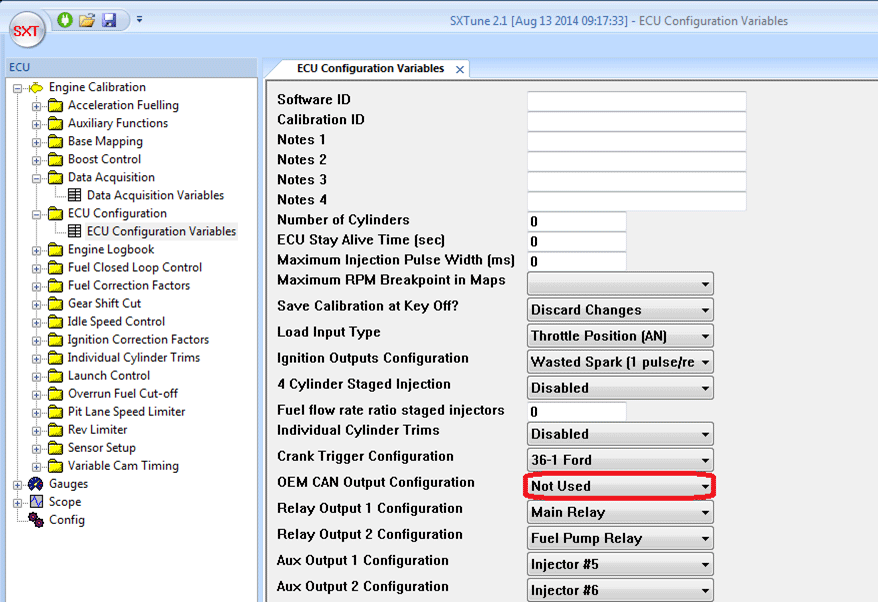

In the specialist components ECU configuration software select the OEM CAN Output configuration to “Not Used” as shown in red below.

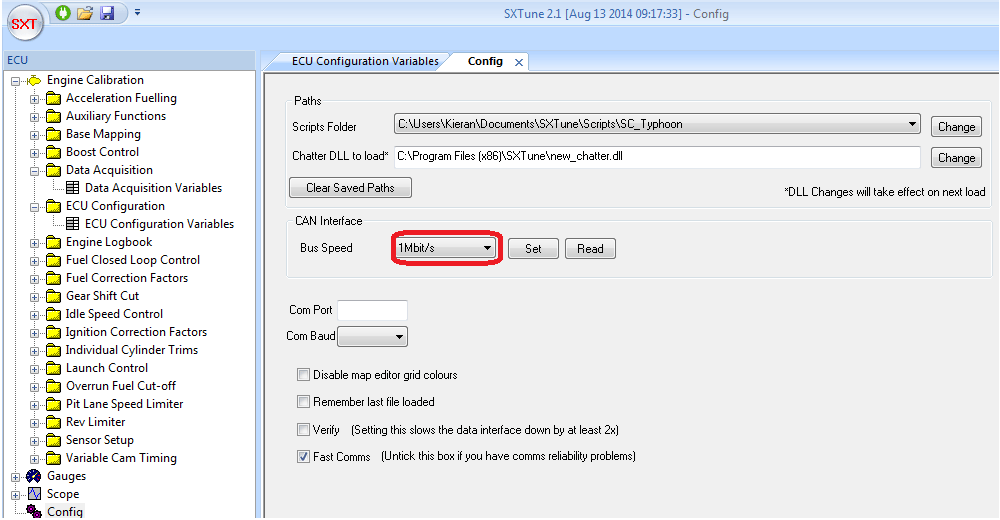

In the specialist components ECU configuration software select CAN baud rate to 1Mbit/s as shown in red below.
Channel Listings
| ECU name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| RPM
| frequency 1
| RPM
| VAR_0010
| 1 RPM
|
| Manifold air pressure
| pressure 5
| Boost presure
| VAR_3504
| 1mbar
|
| Throttle position
| aux 1
| Throttle position
| VAR_2000
| 0.10%
|
| Lambda
| misc 1
| Lambda 1
| VAR_4000
| 0.01 Lambda
|
| Gear position
| temperature 25
| Aux 1
| VAR_1024
| 1
|
| Oil pressure
| pressure 2
| Oil pressure
| VAR_3501
| 1mbar
|
| Fuel pressure
| pressure 3
| Fuel pressure
| VAR_3502
| 1mbar
|
| Atmospheric pressure
| pressure 1
| Ambiant air pressure
| VAR_3500
| 1mbar
|
| Air temp
| temperature 1
| ambient air temp
| VAR_1000
| 0.1c
|
| Water temp
| temperature 8
| water temp
| VAR_1007
| 0.1c
|
| Oil Temp
| temperature 9
| Oil temp
| VAR_1008
| 0.1c
|
| Battery voltage
| misc 3
| battery voltage
| VAR_4002
| 1mV
|
Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
