Changing the brightness of the display

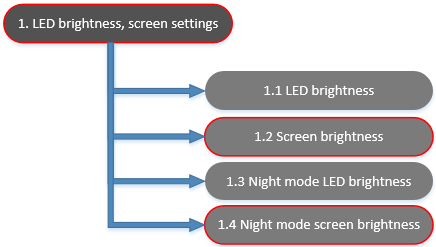

1.2 Screen brightness

1.4 Night mode screen brightness

1. Navigate to the menu item "1.2 Screen Brightness" or "1.4 Night mode screen brightness" and press SET.

2. Use the UP and DOWN buttons to move the on screen slider and adjust the brightness of the display to the desired level.

3. Press SET to save the brightness setting. The DASH4PRO FD will return back to the normal display mode.
