Porsche 911-991
- Porsche 911 (991) Carrera 2012 onwards
- Porsche 911 (991) Carrera S 2012 onwards
- Porsche 911 (991) Carrera 4 2013 onwards
- Porsche 911 (991) Carrera 4S 2013 onwards
- Porsche Boxster (981) 2012 onwards
- Porsche Boxster S (981) 2012 onwards
- Porsche Cayman (981) 2013 onwards
- Porsche Cayman S (981) 2013 onwards
Connections

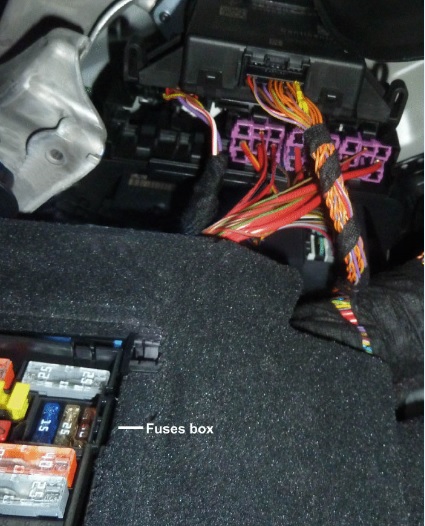

We recommend connecting the CAN + and CAN – at the CAN gateway module located above the fuse box as shown below.

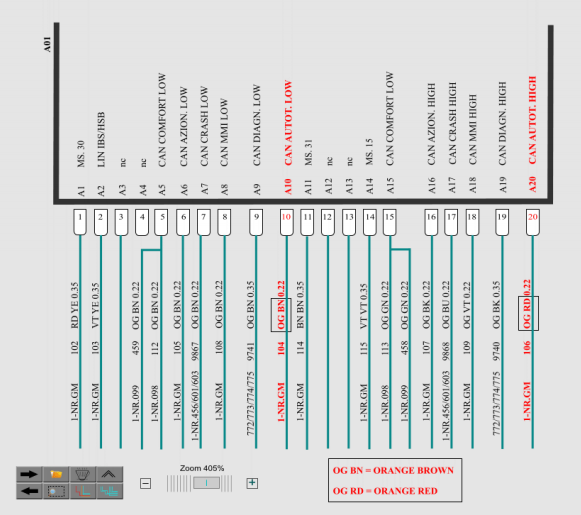

- Connect Race Technology CAN+ to A10 orange/brown (CAN High) of Porsche CAN gateway wiring
- Connect Race Technology CAN- to A20 Orange/red (CAN Low) of Porsche CAN gateway wiring
Race Technology CAN connections
ECU configuration
- No ECU configuration required
Channel listings
| ECU name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| Engine speed
| Frequency 1
| ECU RPM
| VAR_1500
| 1
|
| Wheel speed FL
| Aux 3
| Lambda 2 short trim
| VAR_2002
| km/h .1
|
| Wheel speed FR
| Aux 4
| Lambda 1 Long trim
| VAR_2003
| km/h .1
|
| Wheel speed RL
| Aux 5
| Lambda 2 Long trim
| VAR_2004
| km/h .1
|
| Wheel speed RR
| Aux 6
| Fuel inj 1 PW
| VAR_2005
| km/h .1
|
| Throttle position
| Aux 1
| Throttle position
| VAR_2000
| 0.60%
|
| Steering angle
| Angle 3
| Steering angle
| VAR_3002
| 1 degree
|
| Steering angle speed
| Aux 12
| Fuel inj 7 PW
| VAR_2011
| 1 degree/second
|
| Gear position
| Aux 13
| Fuel inj 8 PW
| VAR_2012
| Raw value
|
| Engine coolant temp
| Temperature 8
| Water temp
| VAR_1007
| 1c
|
| Intake air temp
| Temperature 2
| Inlet pre turbo
| VAR_1001
| 1c
|
| Manifold air pressure
| Pressure 5
| Boost pressure
| VAR_3504
| 10mb
|
| Porsche mode
| Aux 14
| Fuel inj 1 cut
| VAR_2013
| Raw value
|
| Suspension setting
| Aux 15
| Fuel inj 2 cut
| VAR_2014
| Raw value
|
| Brake pressure 1
| Aux 8
| Fuel inj 3 PW
| VAR_2007
| 1 bar
|
*** Steering angle needs to a user defined channel due none standard signed format.
Equation: if(VAR_2011<0,VAR_2011*-1-819.2,VAR_2011)
Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
