NIRA I7 STREET
For Nira i7x with C1_05 software, The CAN data is J1939.
Settings:
No ECU configuration needed

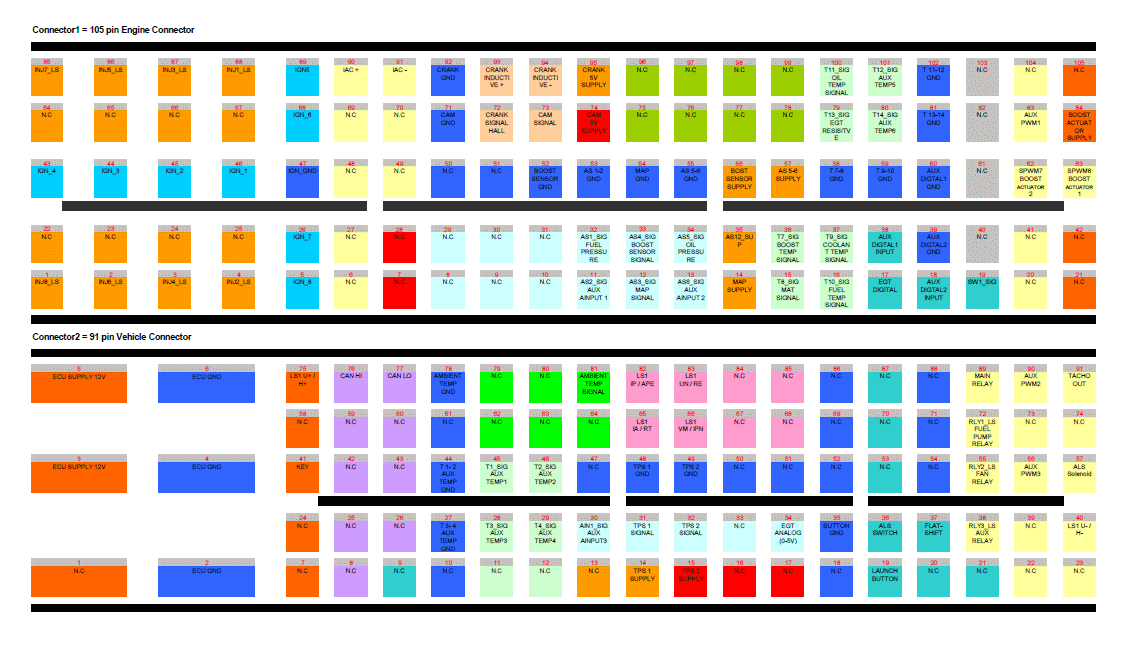

Connections :
You will need to apply the D-sub 9 female connector to the ECU.
Channel Listing:
| ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| RPM
| Engine RPM
| RPM
| VAR_0010
| 0.125RPM
|
| Water temp
| temperature 8
| Water temp
| VAR_1007
| 1C
|
| Air temp
| temperature 1
| temperature 1
| VAR_1000
| 1C
|
| Throttle position
| aux 1
| Throttle position
| VAR_2000
| 0.40%
|
| Manifold pressure
| pressure 5
| Boost pressure
| VAR_3504
| 2kPa
|
| Oil pressure
| pressure 2
| Oil pressure
| VAR_3501
| 4kPa
|
| Oil temperature
| temperature 9
| Oil temp
| VAR_1008
| 0.1c
|
Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
