Live Data

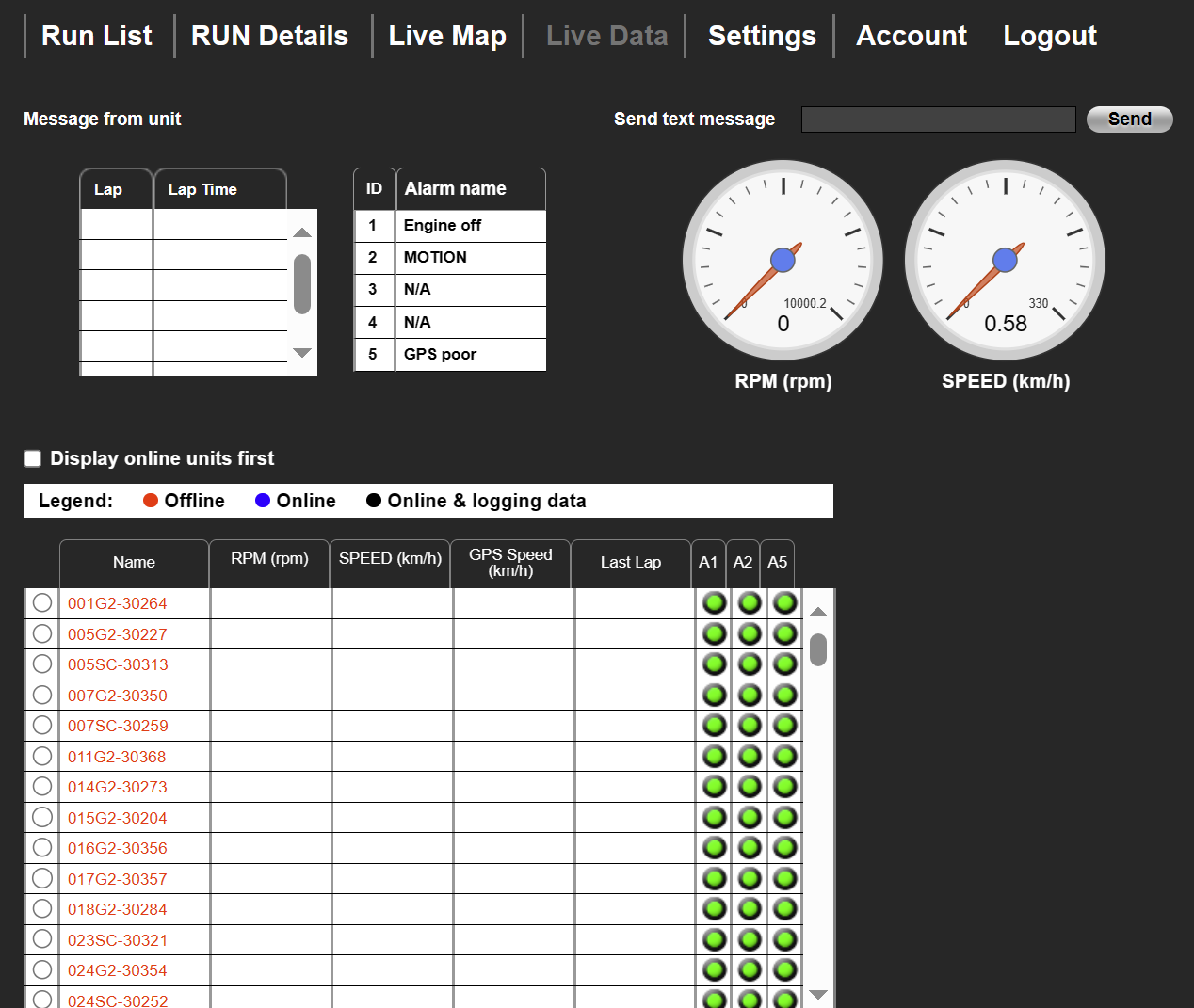

This section shows the information relating to the live data coming from the cloud connected units. The displayed data includes lap timing data and alarms. It also shows the messages from the units and allows you to send text messages to the cloud connected units.

The data displayed on this page and the two dials can be configured using the Settings page.
