DASH2 PRO Internal Data Process:
This diagram demonstrates the route and process of data within the DASH2 PRO unit, enabling you to understand the system and its processes completely.
Note: the internal database uses metric units, and then converts them to alternative units for display. So if you intend to use different units (for example for different drivers having alternative unit preferences) it is recommended that you calibrate any inputs sensors/data as metric units.
(Click to View Larger Image)

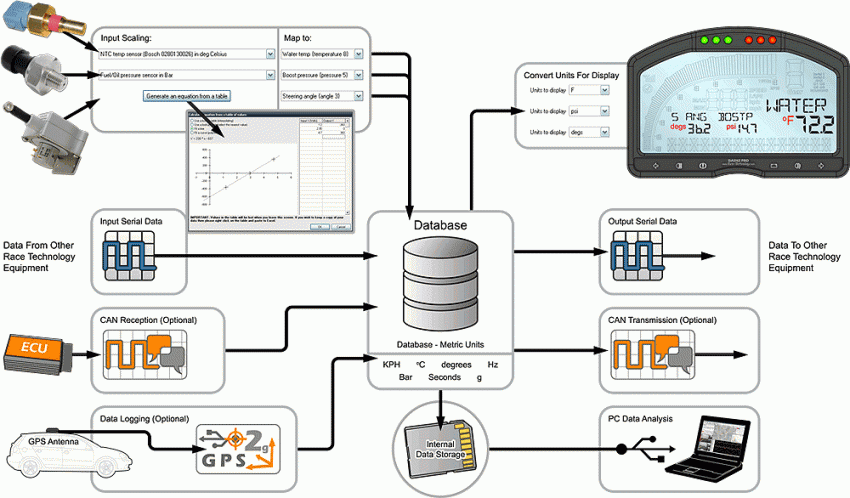

Figure 5: DASH2 PRO data process diagram
