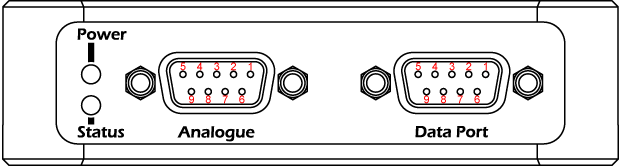

Connector Pinout Details

Data Port Pinout Details

Pin

Function

RS232 Tx

RS232 Rx

GND

CAN L

Power in

CAN H

Timing Signal

Analogue Pinout Details

Pin

Function

Lat Accel

Long Accel

Vert Accel

Roll

Yaw

Pitch

DO NOT USE

GND

Analogue Output Details:
Accelerometers are 1g/v, centred at 0v
Gyro outputs are 100degrees/s/v ,centred at 0v
DAC maximum output current is 10mA
