Configuring the RPM

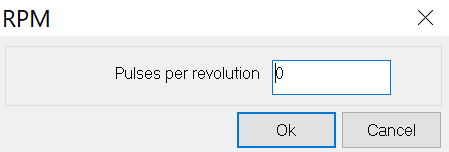

This screen is used to configure the engine RPM. (menu command: "Configuration -> RPM")
This is a very important configuration parameter and it allows the software to convert the number of input pulses to a useful reading of RPM.
Without a correct setting for pulses per revolution the RPM data will be incorrect.
Actual RPM is calculated by dividing the number of input pulses by the pulses per revolution value that you enter into this dialog.
