MBE 9A8, 9A4 & MBE 992 (CAN)
ECU Mapping - Easimap 6 Software
Race Technology Ltd provide a CAN setup file for the MBE ECU mapping software - Easimap 6 upon request. Get in touch if you wish to setup CAN communication, between the MBE ECUs stated above & Race Technology CAN enabled device(s).
Open the Easimap 6 software from the desktop icon:
Load in your pre-made ECU map file. Alternatively read the map back from the ECU, to do this connect your ECU to the PC / laptop >>> power the ECU >>> on the mapping software select File >>> Load All Data From ECU.

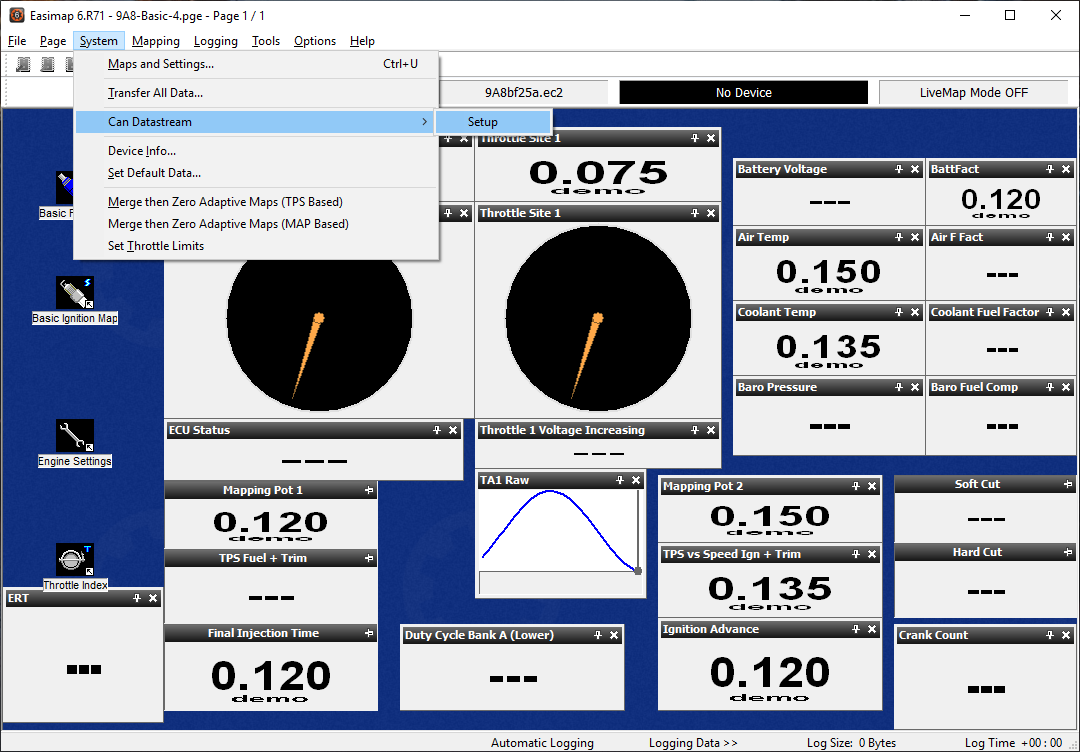

Open the CAN Setup area from System >>> CAN Datastream >>> Setup:

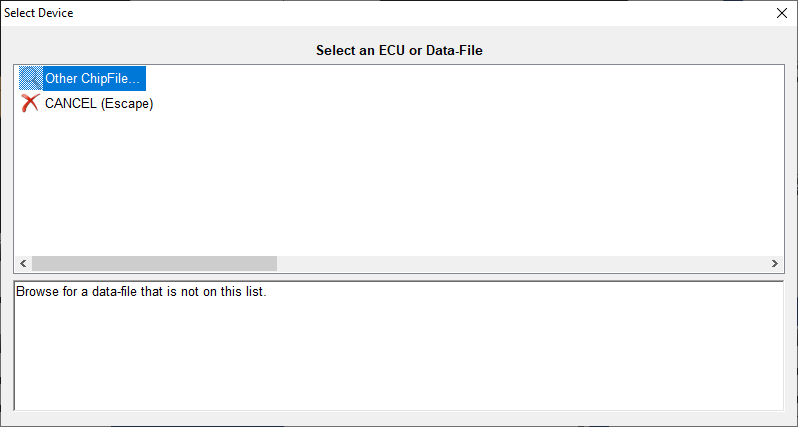

Double click on Other ChipFile:

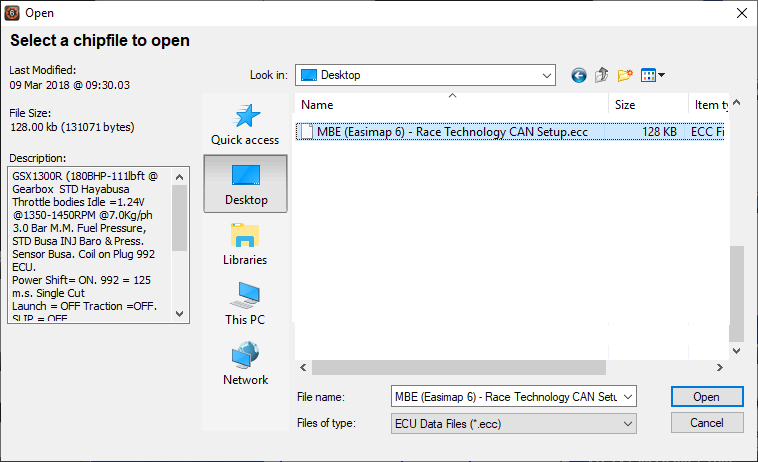

Open the CAN file Race Technology supply - MBE (Easimap 6) - Race Technology CAN Setup.ecc:
You should see the following CAN setup loaded:
Send the new CAN setup to the ECU, using the Import option, located along at the top of the window. After importing the new CAN setup, it is strongly recommended, a copy of your ECU map is saved to your PC / laptop for future use.
ECU Connections
- Pin 8 = CAN Low
- Pin 9 = CAN High
Available ECU Channels
| ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| Engine speed
| Engine RPM
| RPM
| VAR_0010
| 1 RPM
|
| Throttle voltage
| angle 1
| Throttle angle
| VAR_2000
| 0.01 V
|
| Supply voltage
| misc 3
| Battery voltage
| VAR_4002
| 0.01 V
|
| coolant temp
| temperature 8
| Water temp
| VAR_1007
| 0.6 oC
|
| Oil temp
| temperature 9
| Oil temp
| VAR_1008
| 0.6 oC
|
| Air temperature
| temperature 1
| temperature 1
| VAR_1000
| 0.6 oC
|
| Lambda 1
| misc 1
| Lambda 1
| VAR_4000
| 0.01 lambda
|
| MAP 1 (Site)
| pressure 5
| Boost pressure
| VAR_3504
| 0-16
|
| Injection time (BANK A)
| measured time 1
| Fuel inj 1 PW on
| VAR_2500
| 1ms
|
| Oil pressure
| pressure 2
| Oil pressure
| VAR_3501
| 0.1 kPa
|
| Fuel pressure (voltage)
| pressure 3
| Fuel pressure
| VAR_3502
| 0.01 V
|
| baro pressure mbar
| pressure 1
| Ambient air pressure
| VAR_3500
| 0.1 kPa
|
| Wheel speed
| temperature 25
| Aux 1
| VAR_1024
| 0.1 MPH
|
| Exhaust gas temp (voltage)
| temperature 17
| Exhaust 1 temp
| VAR_1016
| 0.01 V
|
| Igniton advance
| angle 2
| Ignition angle
| VAR_3001
| 0.5 o
|
Note - Not all channels listed in the table(s) above, may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
