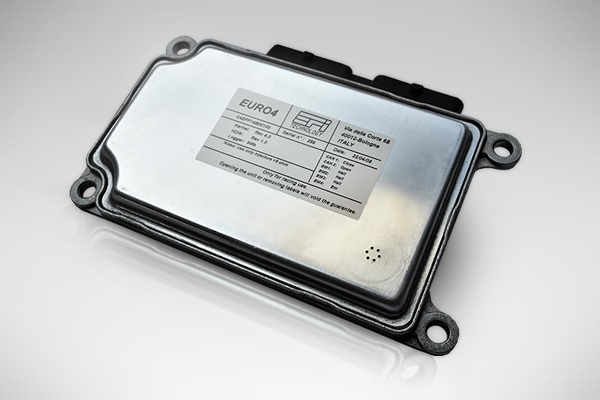

EFI Euro 4 ECU
Compatibility
Configuration
CAN2 export Euro-4; STANDARD (CAN setting 1). From software version 1.32
Connections
This ECU should be connected via CAN connections. The EFI Euro 4 is equipped with two male connectors. The CAN High and CAN Low connections are located in the right hand connector (CNR)
- Pin F3 - CAN High
- Pin E4 - CAN Low
Data Channel Listing:
ECU Message Name
| Race Technology Data Channel
| Resolution of Data
|
RPM
| RPM (Engine RPM)
| 1 RPM
|
Throttle Position
| Throttle position (aux 1)
| 0.39% (0-100)
|
MAP
| Boost pressure (pressure 5)
| 0.1 kPa
|
Spark Advance
| Ignition angle (angle 2)
| 0.25 BTDC
|
Lambda1
| Lambda 1 (misc 1)
| 0.0078 lambda
|
Oil Pressure
| Oil pressure (pressure 2)
| 0.1 kPa
|
Fuel Pressure
| Fuel pressure (pressure 3)
| 0.1 kPa
|
Water Temp
| Coolant temp (temperature 8)
| 0.62 oC
|
Oil Temp
| Oil temp (temperature 9)
| 0.62 oC
|
Air Temp
| Ambient air temp (temperature 1)
| 0.62 oC
|
Baro
| Ambient air pressure (pressure 1)
| 0.1 kPa
|
Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
