Hardware / GNSS2

GNSS2

Time pulse output for data synchronisation

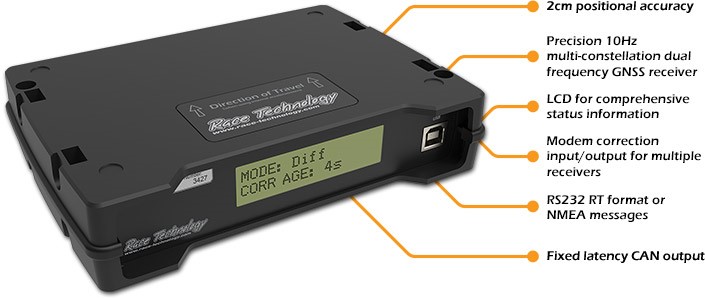

The GNSS2 is a multi constellation GNSS receiver with built in 4G LTE radio modem, capable of giving 2cm precision position when connected to either a web or radio modem based correction source. There are two main modes of operation:

GPS + GLONASS + Galileo + BeiDou 5Hz
GPS + GLONASS + Galileo 10Hz

The GNSS2 is intended for standalone operation with either a Race Technology data logger such as a DL2, or with third party data loggers based using CAN data.

Corrections can be sourced either from a Race Technology base station, or from an NTRIP subscription. In addition to the web based corrections, RTCM corrections can be provided in to the unit via a radio modem if desired.

Full status information for the connection and satellite information is shown on the LCD.

For more information, follow the links bellow:

It is the users responsibility to ensure the products have the correct approvals for the regions they will be operated in. For information on 4GLTE certification click here.
