Graph properties

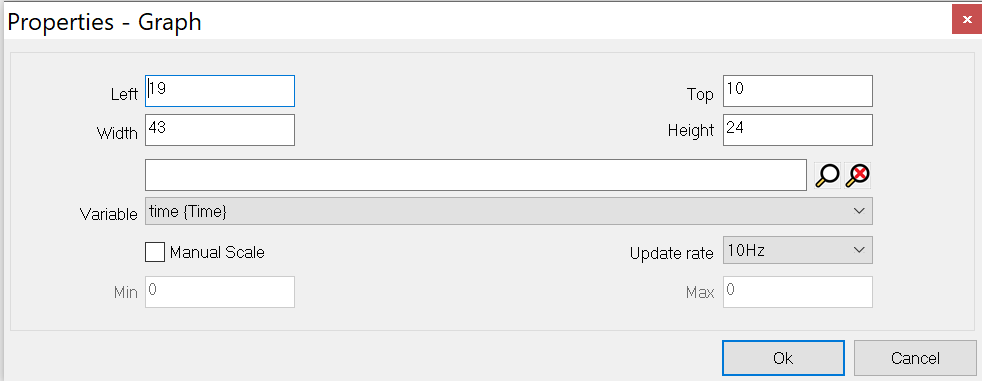

The Graph Properties window will open when you choose to edit the properties of a Graph control.
Once the window has been opened you will be able to customize the following properties:
This is the left coordinate of the control. The number entered in this box will specify the coordinates of the left hand side of the control.
This is the top coordinate of the control. The number entered in this box will specify the coordinates of the top edge of the control.
This box can be used to specify the width of the control.
This box can be used to specify the height of the control.
This box is to be used to assign a variable to the control. The device can display a large number of variables that are sampled by the logger. The Variable box allows you to choose which of these variables is displayed by the current control.
This feature allows you to select the Minimum and Maximum values that you wish to be used in scaling your Graph or Bar Chart. If no values are entered, then the scaling will be done automatically.
The DASH4PRO screen is updated at a rate of 10 Hz. You can reduce the rate at which a particular graph control is updated with this option. Available update rates are 10, 5, 2 and 1 Hz.
