SPEED10

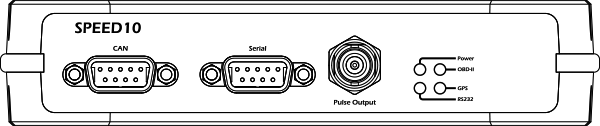

The SPEED10 is a low cost GNSS (GPS and GLONASS) speed sensor intended to give a robust vehicle speed output at 10Hz without the requirement for connection to a vehicle speed sensor. In addition it can be connected to an OBDII interface to give basic vehicle information such as coolant temperature and engine speed. For more information click on the links below:
