How do I know what kind of DL1 I have?

There have been four different editions of the DL1 issued to date. For your application, it may be important to know which edition you have:

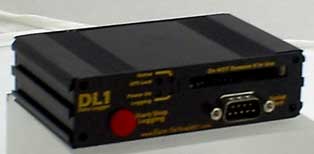

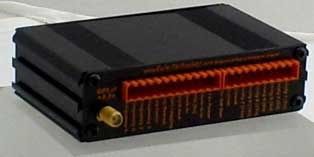

The early DL1 Mk1

  • Orange, 2-piece, single row, rear connectors
  • Serial connector on the front
  • No power supply on the serial port

If you wish to use this type of DL1 with an ancillary unit connected to the serial port (DASH1, VOB, ECU Interface etc.), it must first be returned to Race Technology for a small modification to connect power to the serial port.

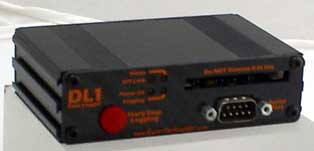

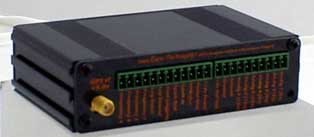

The later DL1 Mk1

  • Green, 2-piece, single row, rear connectors
  • Serial port on the front
  • Power supply provided on the serial port

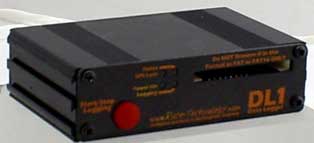

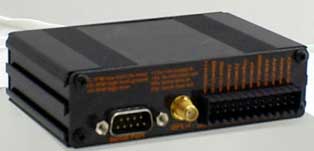

The DL1 Mk2

  • Black, 1-piece, double row, rear connector
  • Serial port on the rear
  • Power supply provided on the serial port

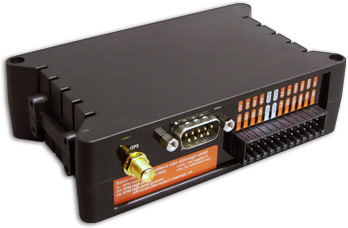

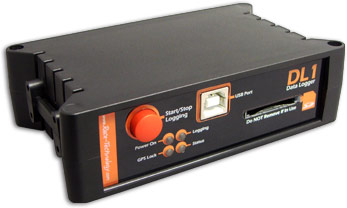

The DL1 MK3/CLUB


  • Plastic case
  • USB socket on the front
  • SD card instead of CF card slot
