GPS2 / Connections

GPS2 Connections

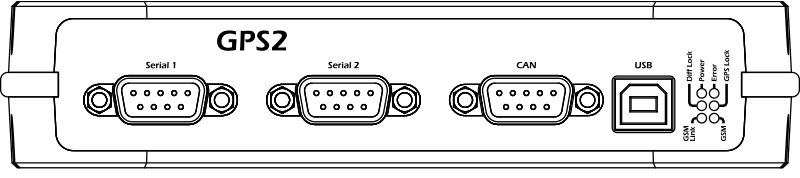

Front panel

Serial ports 1 and 2

9 way D-type male connector

Pin	Name	Description
2	Rx	Receive
3	Tx	Transmit
5	GND	GND
7	+V	Power in/out

CAN ports 1-2

9 way D-type male connector

Pin	Name	Description
2	CAN L	CAN low
3	GND	CAN GND
7	CAN H	CAN high

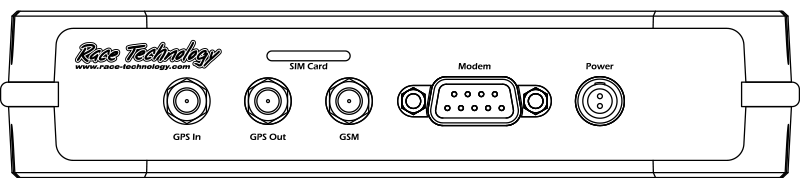

Rear Panel

Modem

Pin	Name	Description
2	Rx	Receive
3	Tx	Transmit
4	+V	Power in/out
5	GND	GND
7	RTS	Ready to send
8	CTS	Clear to send
