Run Manager

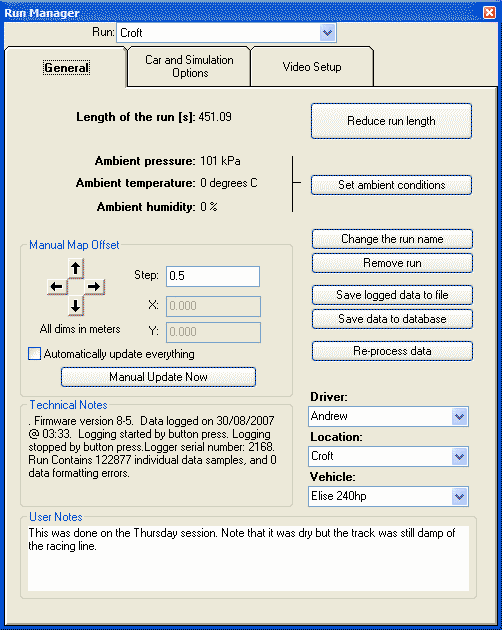

The run manager is the tool that allows you to view which runs are loaded and specify options that effect a specific run. To display the run manager go to > Data > Run Manager or click the

button on the tool bar:

If multiple runs are loaded then the run is selected by it's name from the top, drop down list box. Please make sure you have the right run selected when editing the settings.
