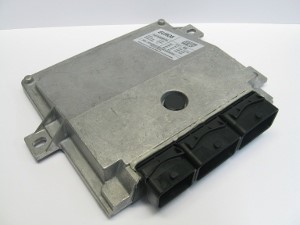

EFI Euro 8
Compatibility
Configuration
ECU configuration not required.
Connections

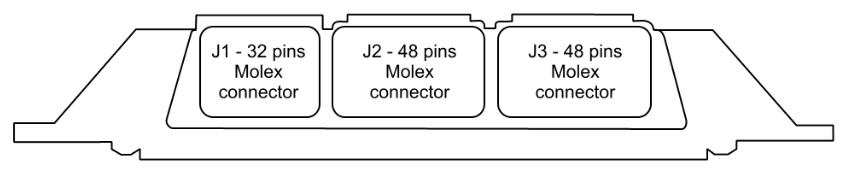

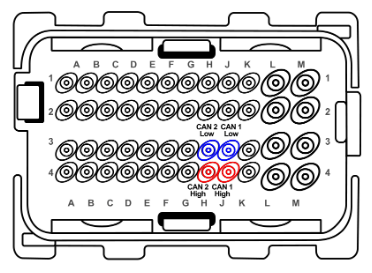

This ECU should be made via CAN connections. Connection must be made to CAN 2. This can be found on connector J3 of the ECU.
- H4 - CAN 2 High
- H3 - CAN 2 Low
Data Channel Listing
| ECU Message name
| Race Technology Data Channel
| Resolution of Data
|
| E8_RPM
| RPM (Engine RPM)
| 1rpm
|
| E8_TPS1
| Throttle position (aux 1)
| 0.1%
|
| E8_MAP
| Boost pressure (pressure 5)
| 0.1bar
|
| E8_VEH_SPEED
| Speed from the ECU (misc 4)
| 0.1
|
| E8_AFR_NGK1
| Lambda 1 (misc 1)
| 0.001
|
| E8_AFR_NGK2
| Lambda 2 (misc 2)
| 0.001
|
| E8_GEAR
| Fuel Inj 8 cut (aux 21)
| #
|
| E8_OIL_PRESS
| Oil pressure (pressure 2)
| 0.1bar
|
| E8_FUEL_PRESS
| Fuel pressure (pressure 3)
| 0.1bar
|
| E8_BARO_PRESS
| Ambient air pressure (pressure 1)
| 1mbar
|
| E8_VBATT_DIR
| Battery voltage (misc 3)
| 0.01v
|
| E8_TH20
| Coolant temp (temperature 8)
| 0.1 C
|
| E8_TOIL
| Oil temp (temperature 9)
| 0.1 C
|
| E8_TFUEL
| Ambient air temp (temperature 1)
| 0.1 C
|
| E8_TAIR
| Inlet pre turbo 1 (temperature 2)
| 0.1 C
|
Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
