GNSS2 / Connections

Connections

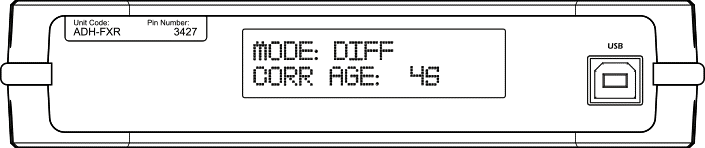

Front

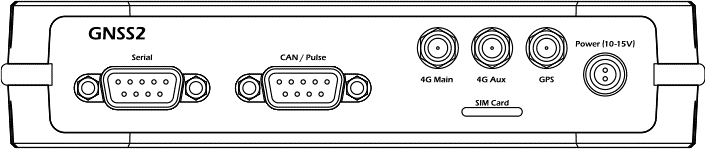

Rear

Serial port 9 way d-type male

Pin Function

2	RS232 1 Rx
3	RS232 1 Tx
4	RS232 2 Tx
5	RS232 1&2 Ground
6	RS232 2 Rx
7	10-15v power in/out

CAN / Pulse 9 way d-type male

Pin	Function
2	CAN Low
6	Ground
7	CAN High
9	PPS output (0-5v square wave)
Termination	Non fitted

4G Main and Aux

SMA female connectors
The 4G Main antenna is used for transmission and reception and must have an antenna connected even if there is no SIM card and the 4G LTE connection is not being used.
The 4G Aux antenna is an optional antenna for improved signal reception in areas of poor coverage

GPS

SMA female connector
GNSS2 requires a multi-constellation, dual frequency GNSS antenna

Power connector

LEMO 2 pin connector part number FGG.0B.302.CLAD52Z

Power Connector pinout details

Pin	Function
1	+ve
2	GND
