ECUType / VW

VW

Car models

Polo 4th series 2001-2009
Polo 5th series from 2009
Jetta 5th series 2005-2011
Jetta 6th series from 2011
Scirocco 3rd series from 2008
Golf 5th series 2003-2008
Golf 6th series 2008-2012

Connections

Race Technology CAN connections

CAN connection cables can be found in different places: behind the instrument cluster, near the steering column, behind the fuse box or the glove box inside the main wiring loom. Regardless of the stock ECU installed on the car, colours of the cables you need to connect to are always the same, they are twisted and you can see them here below.

 CAN low  - Orange/brown
 CAN High - Orange/black

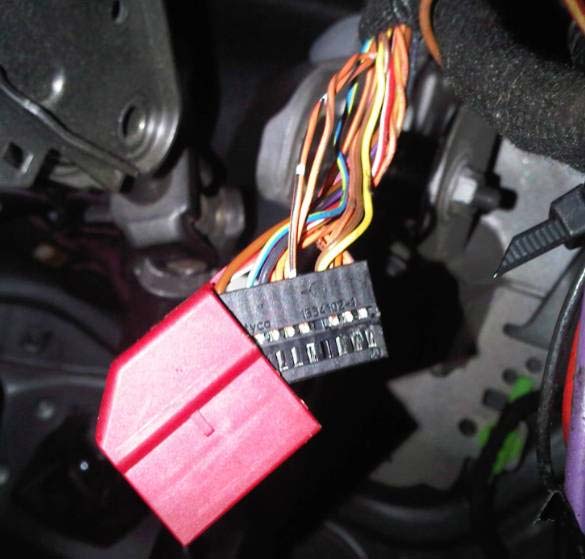

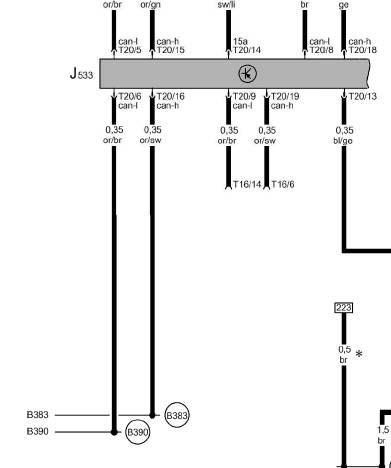

This example below is from a Scirocco connecting to the wires at the CAN gateway.

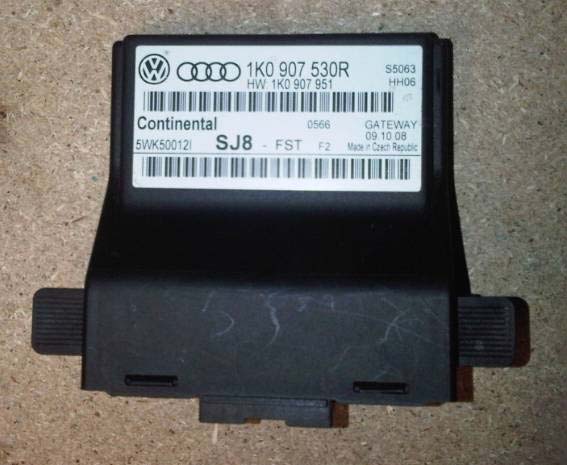

CAN gateway

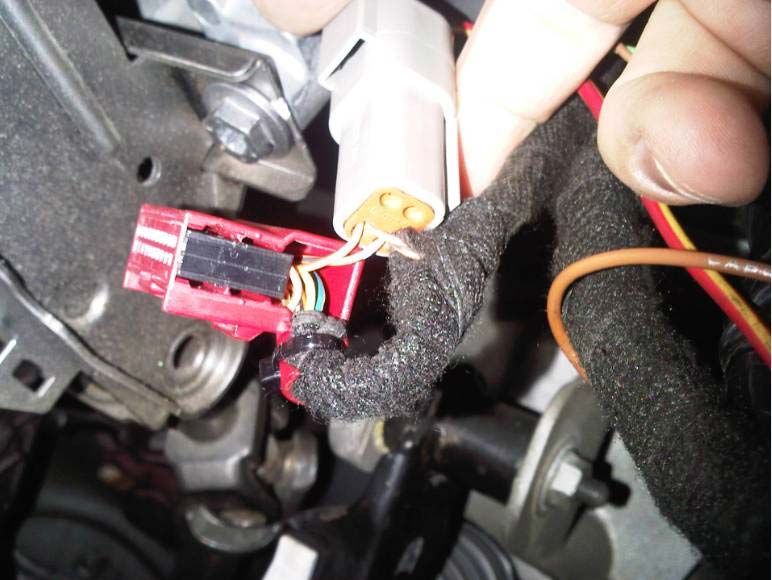

Connector added

ECU configuration

No ECU configuration required

Channel listings

ECU Name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
Water Temp	temperature 8	Water temp	VAR_1007	1⁰C
RPM	frequency 1	Engine speed (ECU)	VAR_1500	2RPM
Air temp	temperature 6	Inlet post intercooler 1	VAR_1005	1⁰C
Atmospheric temp	temperature 1	ambient temperature	VAR_1000	0.5⁰C
Oil temp	temperature 9	Oil temp	VAR_1008	1⁰C
Injected fuel	aux 6	Fuel inj 1 PW	VAR_2005	Raw
Brake sensor switch	aux 2	Lambda 1 short trim	VAR_2001	On/off
Gearbox temp	temperature 10	Gearbox temp	VAR_1009	1⁰C
TPS	aux 1	Throttle position	VAR_2000	0.10%
FR Wheel speed	aux 3	Lambda 2 short trim	VAR_2002	0.1KPH
FL Wheel speed	aux 4	Lambda 1 long trim	VAR_2003	0.1KPH
RR Wheel speed	aux 5	Lambda 2 long trim	VAR_2004	0.1KPH
RL Wheel speed	aux 6	Fuel inj 1 PW	VAR_2005	0.1KPH
Engine load	aux 26	Auxiliary 1	VAR_2025	0.10%
Boost TSI	pressure 5	Boost pressure	VAR_3504	0.1bar

Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
