ECUType / SkynamSybele

Skynam Sybele

Information

Compatible with CAN interface only due none standard format of ECU CAN data.
CAN interface requires Skyman Sybele firmware

Versions

Gasoline ECUs:

Challenger4
Challenger5
Challenger6
Commander44
Commander66

Diesel ECUs:

Commander6D

Connections

Race Technology CAN connections

CAN interface connections - http://www.race-technology.com/wiki/index.php/CANInterface/PinConnections
Connect Race Technology CAN+/H to ECU CAN +/H
Connect Race Technology CAN �/L to ECU CAN �/L

Challenger4

CAN+ pin 10 of the ECU connector.
CAN- pin 9 of the ECU connector.

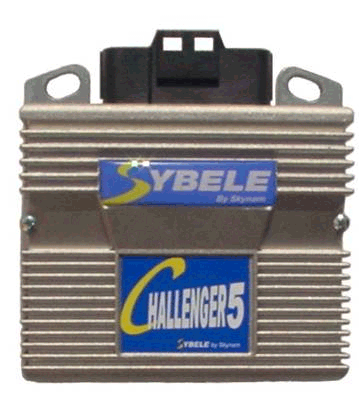

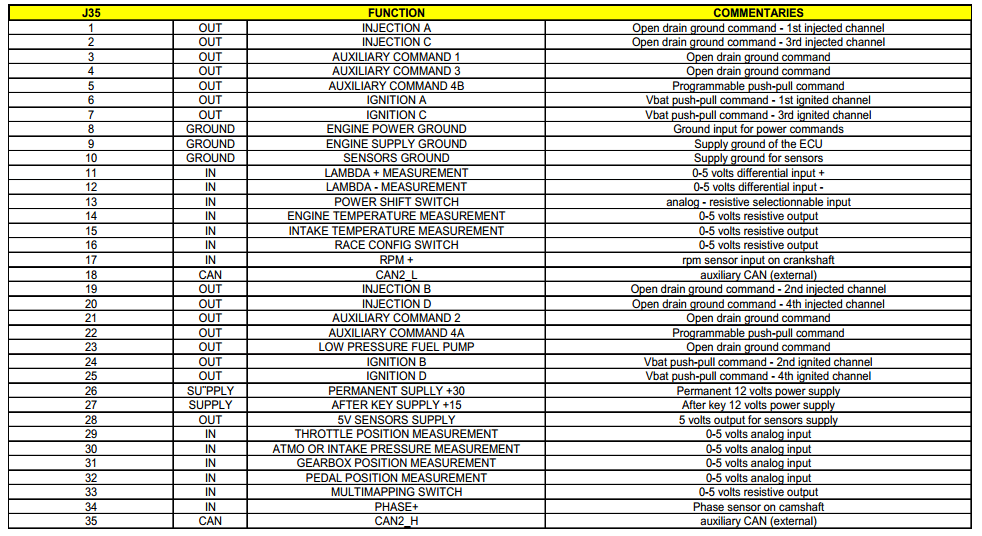

Challenger5

Challenger6

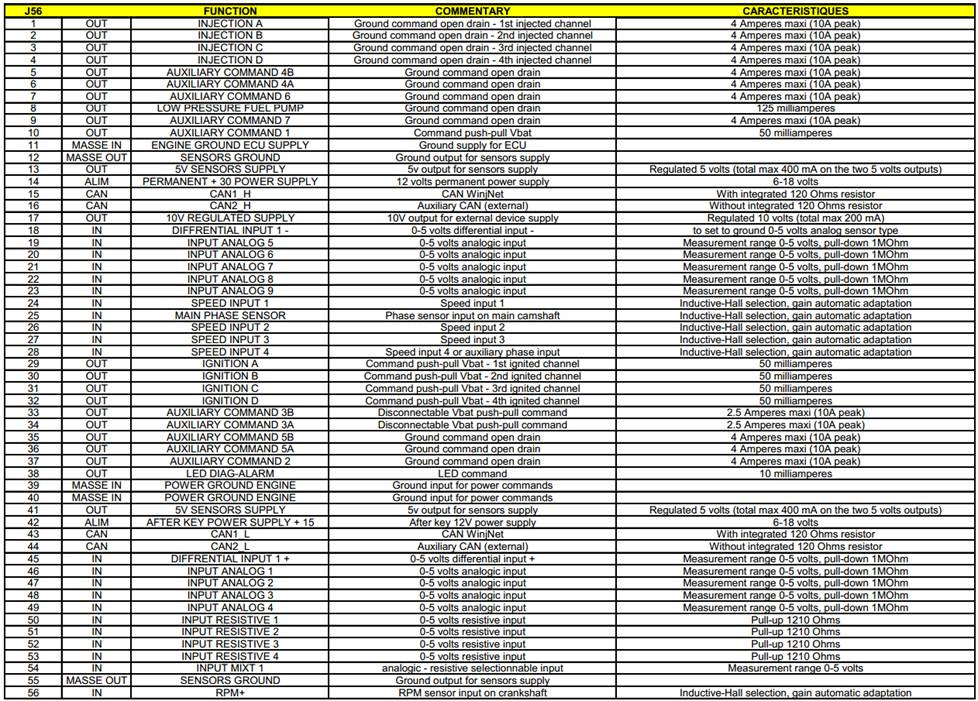

Commander44

Commander66

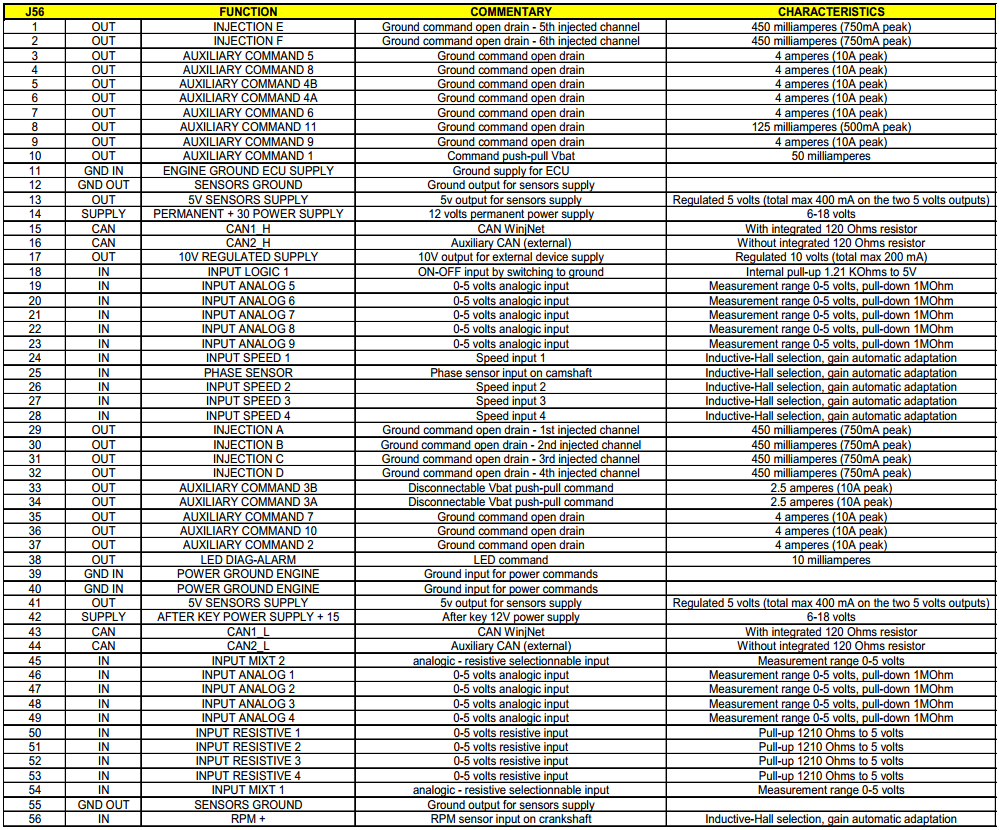

Commander6D

ECU settings

No ECU configuration required. All ECU�s output data by default.

Channel listings

ECU Name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
Engine speed	Engine RPM	RPM	VAR_0010	25rpm
Throttle position	aux 1	Throttle position	VAR_2000	0.10%
Intake pressure	pressure 5	Boost pressure	VAR_3504	1 mbar
Supply voltage	misc 3	Battery voltage	VAR_4002	10mv
Lambda	misc 1	Lambda 1	VAR_4000	0.01
Engine temperature	temperature 8	Water temp	VAR_1007	1 degree C
Intake temperature	temperature 6	Inlet post intercooler 1	VAR_1005	1 degree C
Atmospheric pressure	pressure 1	Ambient air pressure	VAR_3500	1mbar
Gear	aux 24	ISBV 2 open	VAR_2023	1
Injection time in ms	measured time 1	Fuel inj 1 PW on	VAR_2500	1 microsecond
Ignition angle	angle 2	Ignition angle	VAR_3001	1 degree
Turbo pressure target	pressure 4	Water pressure	VAR_3503	1 mbar
Turbo command value	aux 23	ISBV 1 open	VAR_2022	0 to 99.9
Fly by wire position	aux 26	Auxiliary 1	VAR_2025	0 to 99.9
Richness target	aux 27	Auxiliary 2	VAR_2026	0 to 1500
Fuel pressure	pressure 3	Fuel pressure	VAR_3502	10bar
Air flow	aux 28	Auxiliary 3	VAR_2027	(kg/h)
Oil temperature	temperature 9	Oil temp	VAR_1008	1 degree C
Oil pressure	pressure 2	Oil pressure	VAR_3501	1mbar

Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
