DASH4PRO2ControlProperties / SimpleTextProperties

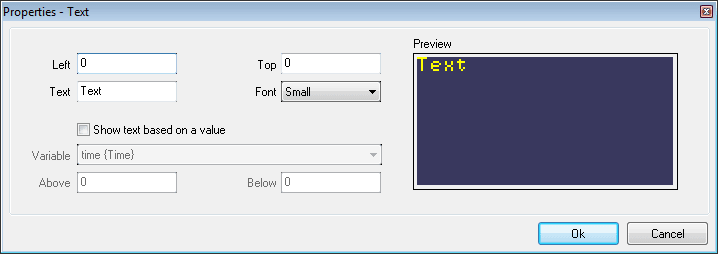

Simple Text properties


The Simple Text Properties window will open when you choose to edit the properties of a Simple Text control.

Once the window has been opened you will be able to customize the following properties:

  • Left
This is the left coordinate of the control. The number entered in this box will specify the coordinates of the left hand side of the control.
  • Top
This is the top coordinate of the control. The number entered in this box will specify the coordinates of the top edge of the control.
  • Show Text based on a value
When this option is not selected, text that you have added to the control’s Text property is always displayed. To display the text only during the time where a variable value falls within a some minimum and maximum, select this option, then select the variable and finally select the minimum and maximum values for the variable.
  • Text
This is the text that you wish to display on the screen. The text cannot exceed seven characters in length.
  • Font
This allows you to specify the font size of the text. You may choose from the following three sizes:
Small
Medium
Large
