| GENERAL
|
| Power requirements
| +5.5 to 24V
|
| Power consumption
| 1W
|
| Case construction
| Die-cast aluminium
|

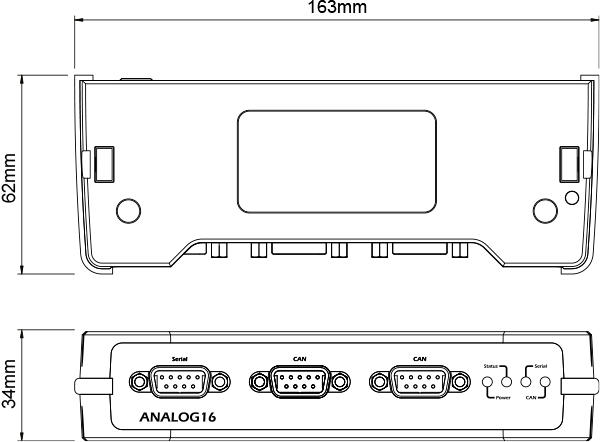

| Dimensions
| 163x62x34mm
|
| Mass
| 295g
|
| IP rating
| IP50
|
| Operating temperature
| -40 to 70 degrees C
|
| Humidity
| 5 to 95% non-condensing
|
| Fixing method
| Fixing links to other Race Technology products / velro / tie wraps
|
| Outputs
| RS232,CAN
|
|
|
| CAN
|
| Maximum baud rate
| 1Mb/s
|
| Data rate
| Configurable up to 100Hz per channel
|
| Identifiers
| Configurable addresses, 11 or 29 bit
|
|
|
| RS232
|
| Baud rate
| 115200 or 460800 baud
|
| Data rate
| Configurable up to 100Hz per channel
|
| Data format
| Race Technology Analogue/Temperature/Pressure/Auxiliary/Angle/Misc channels
|
|
|
| ANALOGUE INPUTS
|
| Input impedance
| 180k between + and - inputs
|
| Sample rate
| Variable up to 100Hz per channel
|
| Internal resolution
| 3.28uV
|
| Resolution
| 24 bits
|
| Typical accuracy at 25degrees C ambient
| 0.025% full scale
|
| Hardware filter
| RC Digital low-pass
|
| Maximum input range
| ± 27.5V
|
