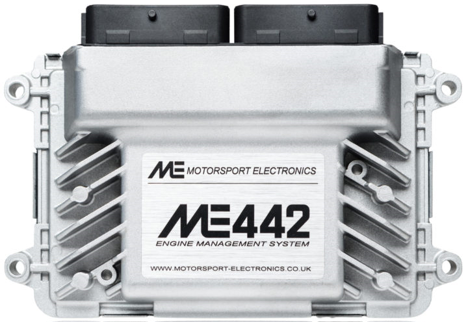

Motorsport Electronics ME442
Connections
Race Technology
Connect Race Technology CAN+ to pin 21 of ME442
Connect Race Technology CAN- to pin 51 of ME442
ECU Configuration
The version 2.1.2-Beta-5 of the firmware has the CAN standard stream enable by default. Future versions will have a setting configuration where the standard configuration will need to be selected.
Channel listings
|
ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
|
Engine Speed
| frequency 1
| Engine speed (ECU)
| VAR_1500
| RPM
|
|
Throttle Position
| aux 1
| Throttle position
| VAR_2000
| 0.10%
|
|
Boost Pressure
| pressure 5
| Boost pressure
| VAR_3504
| 1mb
|
|
Intake Air Tump
| temperature 1
| ambient temperature
| VAR_1000
| 0.1C
|
|
Water Temp
| temperature 8
| Water temp
| VAR_1007
| 0.1C
|
|
Lambda 1
| misc 1
| Lambda 1
| VAR_4000
| 0.01 L
|
|
Battery Voltage
| misc 3
| Battery voltage
| VAR_4002
| 0.01v
|
Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
