GoPro Only software

The GoPro only software is a special build of our standard V10 software, but designed to support the use GoPro GPS data, and not hardware from Race Technology. If you are using a Race Technology logging system you need to use the full V10 software.

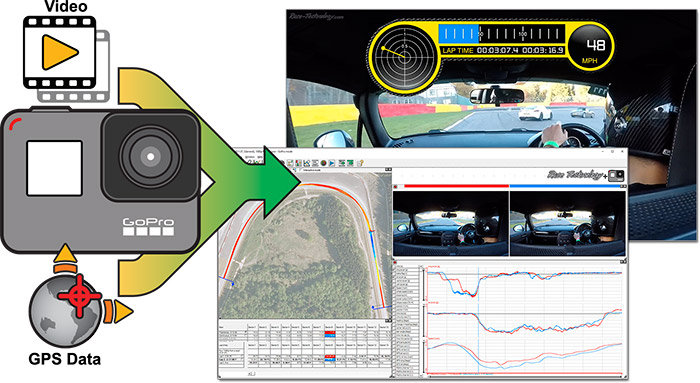

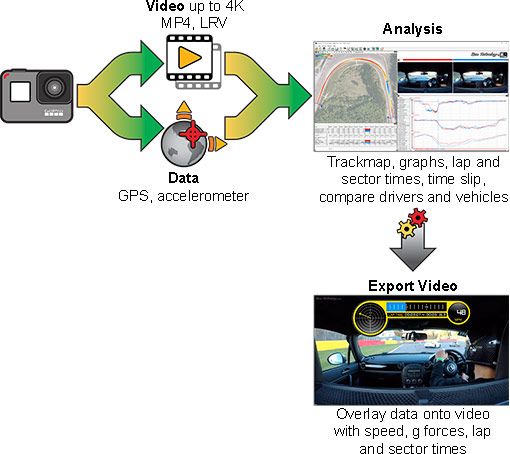

The GoPro Only software extracts GPS and accelerometer data from GoPro video files to:

Create videos with data overlays

Analyse data alongside video in the in-depth Analysis software with lap/sector times, cornering g force, braking points and much much more.

Load and synchronise multiple GoPro videos to show different angles during data analysis and combine them in exported videos

GoPro only software build consists of following tools:

Analysis � a full professional grade data/video analysis package

Video joiner � for joining multiple chapters into full length videos whilst keeping the GPS data intact

Advanced overlay editor � for editing and creating video overlays

Video playback � Standalone video player with frame by frame control for precise playback control

A video introduction to the GoPro Only software is available below:
