RTConnectingHardware / VIDEO4-DLx-ECU

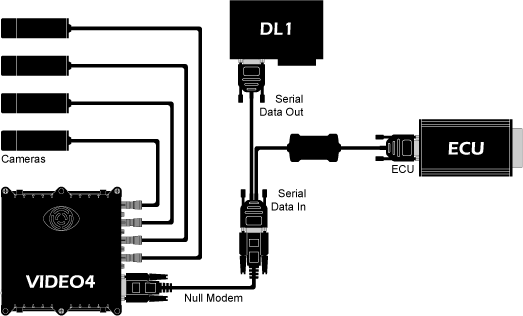

VIDEO4, DL1 and ECU


Please note that in this configuration it is important that both the DL1 and the VIDEO4 are configured to work together correctly. There is more information about this on these pages:

IMPORTANT:

  • For making a connection to an ECU, it's not always possible to plug in the ECU adapter directly to the ECU as not all ECU providers use standard pin outs on their connectors. Please refer to the ECU manufacturers documentation and our installation information. In particular, for CAN it is preferred to use the supplied d-type to fly lead adapter to connect the ECU's loom.
