Dimensions / SPEEDBOXMiniCNC

SPEEDBOX mini (pre 2019 model with CNC case)

Following figures show the physical dimensions and mounting hole dimensions of the SPEEDBOX. All dimensions given are in millimeters.

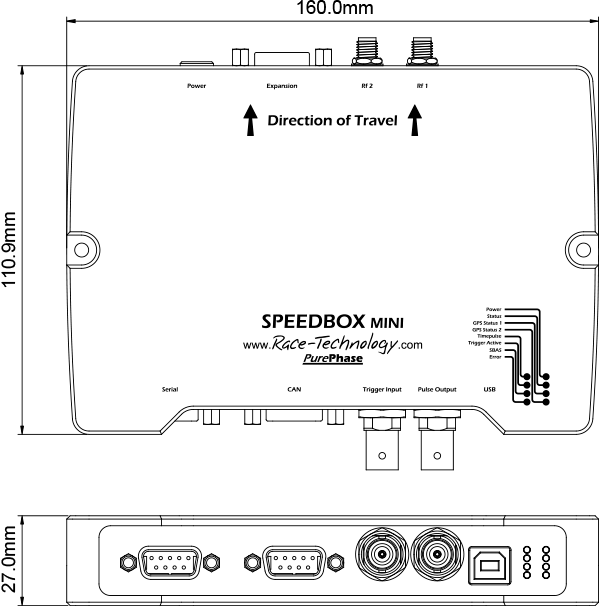

Physical Dimensions

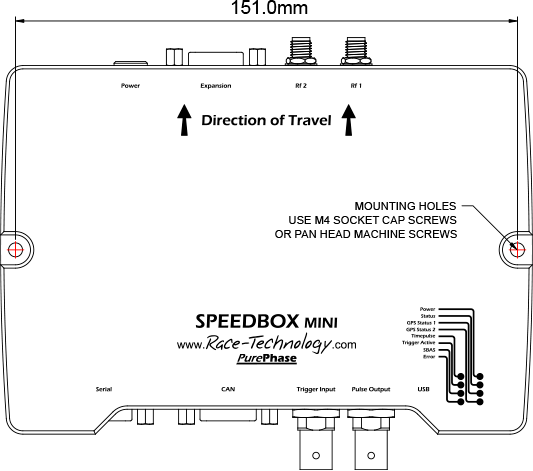

Mounting Hole Dimensions

The mounting holes are non-threaded, and are sized to provide clearance for M4 socket cap or pan head machine screws.
