Toyota GT86

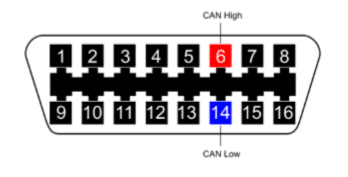

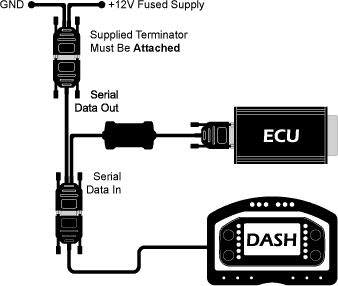

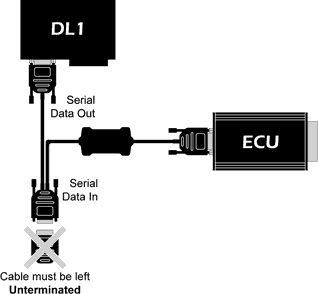

Connections
Note: Race Technology CAN interface only; Protocol requires OBD messages and direct CAN messages which is currently not available on DL1 or DASH2pro direct CAN inputs.
ECU configuration
No ECU configuration required.
Channel listing
| ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| TOYO_RPM
| frequency 1
| Engine speed (ECU)
| VAR_1500
| rpm
|
| TOYO_PEDAL_POS
| aux 2
| Lambda 1 short trim
| VAR_2001
| %
|
| TOYO_BRAKE_PRE
| aux 30
| Fuel aux temp comp
| VAR_2029
| bar
|
| TOYO_STEER_ANG
| angle 3
| Steering angle
| VAR_3002
| deg
|
| TOYO_WHE_FL
| aux 14
| Fuel inj 1 cut
| VAR_2013
| km/h .1
|
| TOYO_WHE_FR
| aux 15
| Fuel inj 2 cut
| VAR_2014
| km/h .1
|
| TOYO_WHE_RL
| aux 16
| Fuel inj 3 cut
| VAR_2015
| km/h .1
|
| TOYO_WHE_RR
| aux 17
| Fuel inj 4 cut
| VAR_2016
| km/h .1
|
| TOYO_OIL_T
| temperature 9
| Oil temp
| VAR_1008
| °C
|
| TOYO_GEAR
| aux 13
| Fuel inj 8 PW
| VAR_2012
| #
|
| TOYO_ECT
| temperature 8
| Water temp
| VAR_1007
| °C
|
| TOYO_IAT
| temperature 4
| Inlet post turbo 1
| VAR_1003
| °C
|
| TOYO_MAP
| pressure 5
| Boost pressure
| VAR_3504
| mbar
|
| TOYO_Fuel level
| aux 27
| Auxiliary 2
| VAR_2026
| -
|
| TOYO_BARO
| pressure 1
| Ambient air pressure
| VAR_3500
| mbar
|
| TOYO_LAMBDA
| misc 1
| Lambda 1
| VAR_4000
| lambda .001
|
| TOYO_THROTTLE
| aux 1
| Throttle position
| VAR_2000
| %
|
Variable file
Base variable file available in factory Race Technology V10 cloud area.

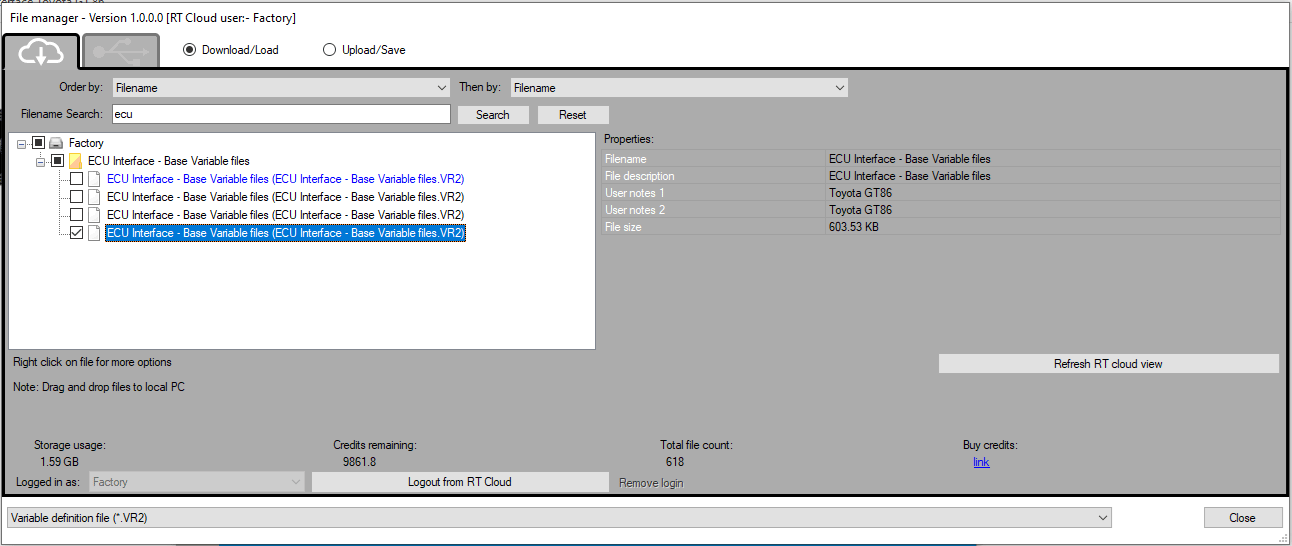

- Variable file contains correct channel naming and units for ECU channels. Open variable manager software and load new variable from menu.
