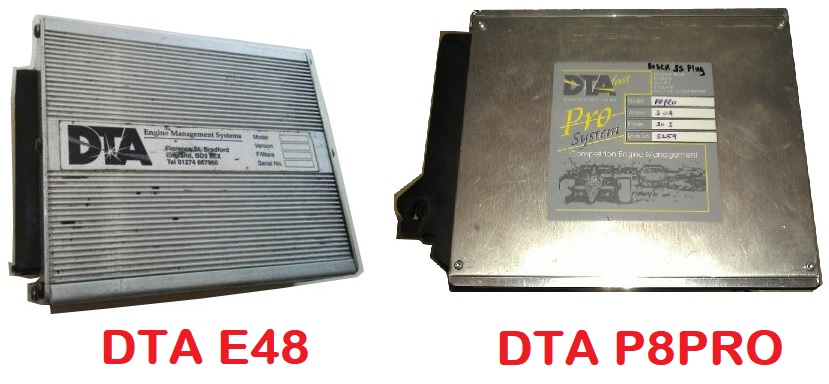

DTA E48 and P8 PRO ECUs
Compatibility
Configuration

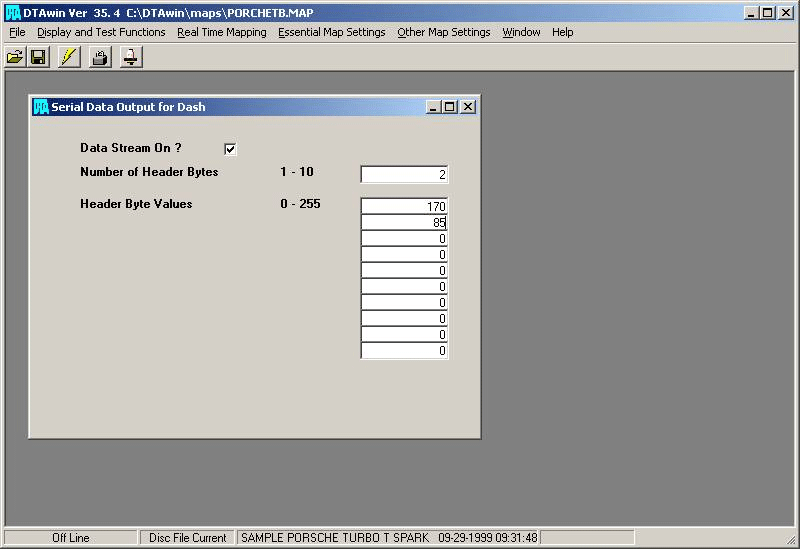

These ECUs must be configured from the Other Map Settings > Data Stream menu. Make sure the settings in the ECU match the settings in the image below:
The DTA E48 & P8 PRO ECUs output a 34 byte sequence of data at 9600 baud.
Connections

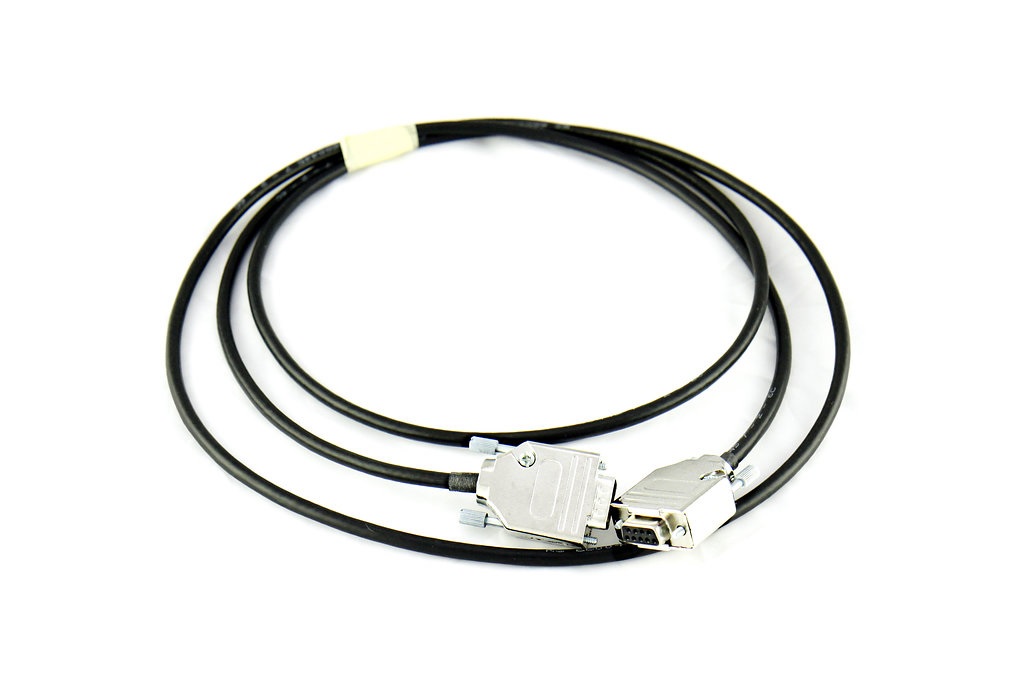

These ECUs should be connected via serial / RS232 connections. DTA sell a DB15 to DB9 cable - https://www.dtafast.co.uk/dta_products/serial-cable/ (below). This will provide the following pinouts on the DB9 (9 pin connector):
- Pin 2 - TX
- Pin 3 - Rx
- Pin 5 - GND
Data Channel Listing
| ECU Message Name
| Race Technology Data Channel
| Resolution of Data
|
| RPM
| RPM (Engine RPM)
| 25 RPM
|
| Air temp
| Ambient air temp (temperature 1)
| 0.1oC
|
| Water temp
| Coolant temp (temperature 8)
| 0.1oC
|
| Throttle
| Throttle position (aux 1)
| 0.1%
|
| Manifold pressure
| Boost pressure (pressure 5)
| 10 mBar
|
| Lambda
| Lambda 1 (misc 1)
| 0.1 Lambda
|
| Bat Volts
| Battery voltage (misc 3)
| 0.01 V
|
| Oil temp
| Oil temp (temperature 9)
| 0.1oC
|
| Oil Pressure
| Oil pressure (pressure 2)
| 10 mbar
|
| Fuel pressure
| Fuel pressure (pressure 3)
| 10 mbar
|
Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
