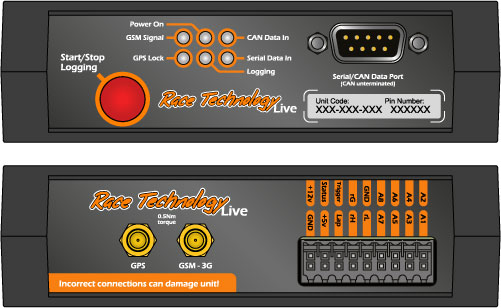

RT LIVE connector details
| LABEL
| DESCRIPTION
|
| A1
| 1-5v 16-Bit
|
| A2
| 1-5v 16-Bit
|
| A3
| 1-5v 16-Bit
|
| A4
| 1-5v 16-Bit
|
| A5
| 2-12v 16-Bit
|
| A6
| 2-12v 16-Bit
|
| A7
| 2-12v 16-Bit
|
| A8
| 2-12v 16-Bit
|
| rL - RPM Low Level
| 5-15v Trigger - ECU or Tacho Use.
|
| GND
|
|
| rH - RPM High Level
| 1KHz HT Input - See Connecting RPM
|
| rG - RPM High Level Ground
| See Connecting RPM
|
| Lap
| Lap marker input (active high)
|
| Trigger
| Active Low (Take to GND) - Toggles Logging ON/OFF
|
| +5v Ref Out
| 50mA Max
|
| Stat
| 50mA Max, Active Low, indicates logging status or GoPro output.
See Connecting GoPro cable
|
| GND
| Ground 0v
|
| +12vPower
|
|
WARNING: To avoid any possible damage to the car paintwork, please take care when mounting magnetic GPS antennas. In particular make sure that there is no dust or grit under the antenna. In some cases it maybe required to add additional protection to the paintwork prior to mounting the antenna to avoid damage.
Male 9-way D type (Front view)
| PIN
| DESCRIPTION
|
| 1
| CAN Low
|
| 2
| Rx - Serial port Data In
|
| 3
| Tx - Serial port Data Out
|
| 4
| Not Used
|
| 5
| GND
|
| 6
| Not Used
|
| 7
| +12v IN/OUT (Fused)
|
| 8
| CAN High
|
| 9
| Not Used
|

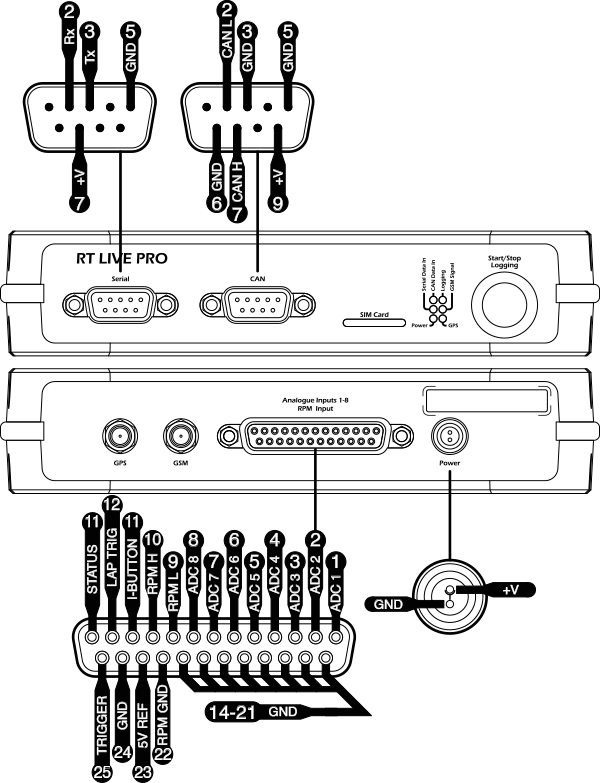

RT LIVE PRO connector details
