Configuration Software

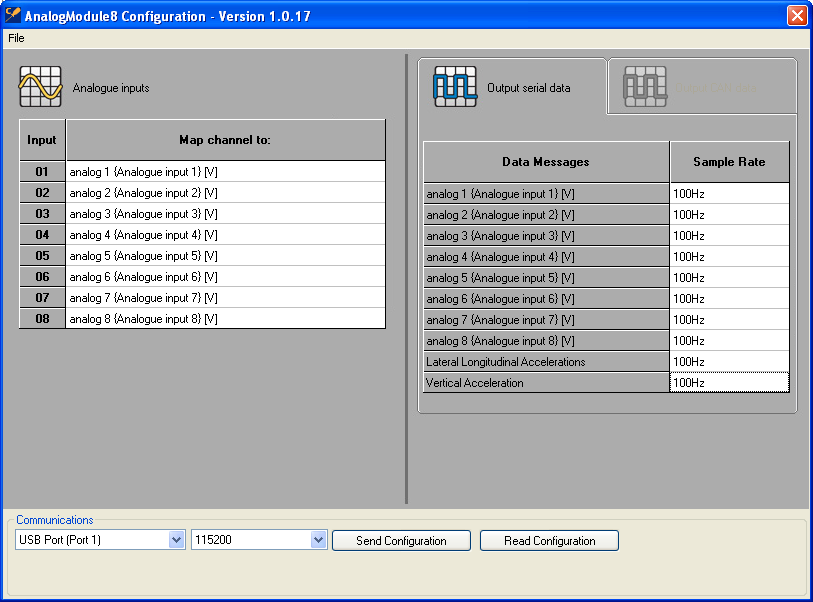

The software can be seen in the screen below, this screen also shows the default configuration all ANALOG8 units are supplied with.

Key features of the configuration software include;

Editing of channel mapping

Editing of serial output rates

Editing of CAN output (Including CAN address and output rate)

Read Configuration (Retrieve current configuration from ANALOG8)

Send Configuration (Send new configuration to ANALOG8)
