How do I set the DL1 SPORT to automatically start and stop logging?

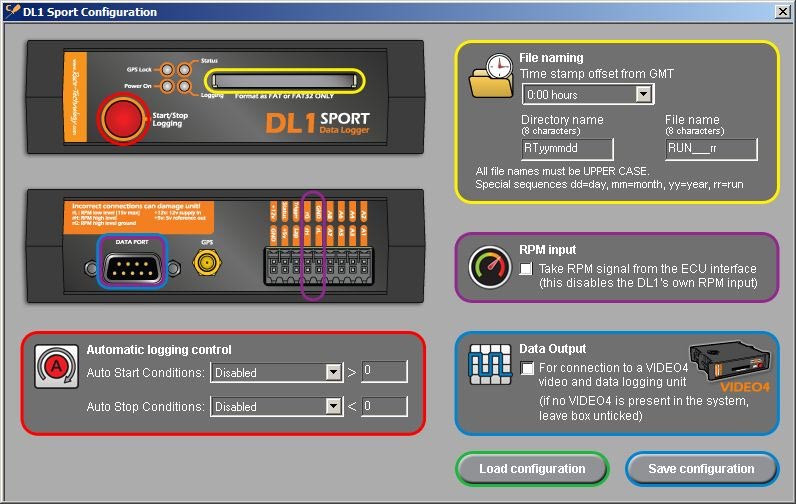

1. Open up the DL1 SPORT configuration software

2. In the Automatica logging control box select to start above a certain acceration or speed and stop below a certain acceleration or speed.

3. Save the configuration file and put the SETUP.BIN file in to the root directory of the DL1 SPORT memory card to load it on to the data logger.
