RTUnitConfigurations / VIDEO4ConfigForDASH

Configuring the VIDEO4 for use with a DASH


When using the DASH and VIDEO4 together, all Output Frequencies must be set to 5Hz, except acceleration and RPM using the Data Configuration dialog in the VIDEO4 Configuration Tool.


1. Open the VIDEO4 Configuration tool.

2. Click on the menu item "Configuration” -> “Data Configuration" to open the "Data Configuration" dialog and select the "Data output and storage" tab.

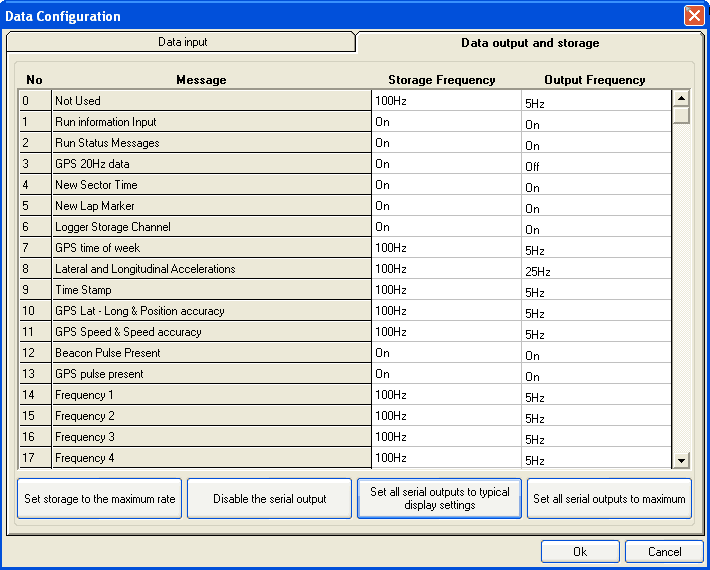

3.Click on the button Set all serial outputs to typical display settings. This will set all outputs frequencies to 5Hz, except acceleration and RPM which are 25Hz. Press OK to save the settings and exit from the dialog.
