GNSS2 / Specification
Specification
| Correction format
| RTCM v3.x
| | Update rate
| Selectable 5Hz or 10Hz (5Hz with BeiDou)
| | Serial I/O
| 2 x RS232 ports
| | Serial 1 (Rear)
| NMEA messages at selectable baud rate
GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG, GPGRS, GPZDA
RT format messages at 115200 or 460800 baud
| | Serial 2 (Rear)
|
RS232 @ 38400 baud. Input or output RTCM v3.x
CTS flow control for transmission
| | CAN output
| GPS status, GPS time, LLH Position, NED velocity, 2D & 3D speed, GPS heading & gradient. 5Hz or 10Hz.
Output latency either ASAP or fixed 150ms.
| | USB
| Configuration / reflash
| | LCD
| Status screens
| | SIM card format
| Micro-SIM (3FF)
| | Voltage
| 12V nominal input, minimum of 10V, maximum of 15V
| | Power consumption
| 3W (average)
| | Weight
| 540g

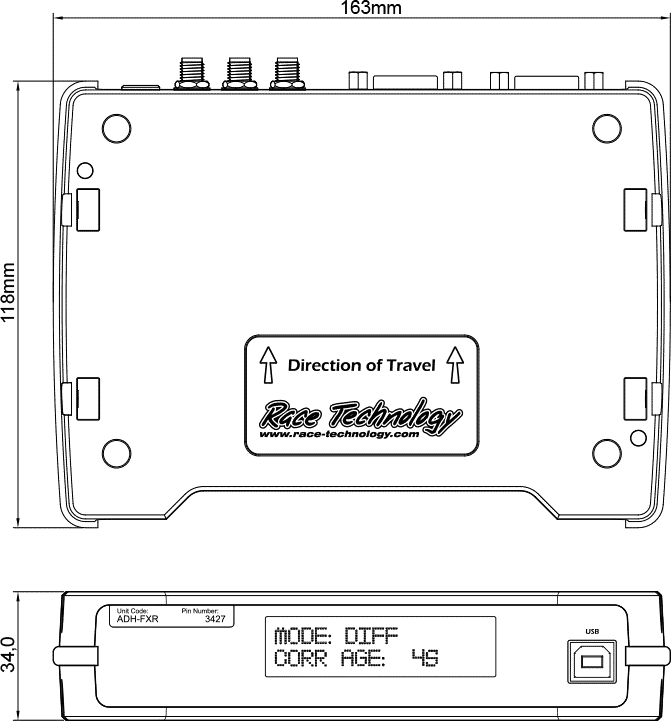

| | Dimensions
| 163mm x 118mm x 34mm
| | Antenna (4G main and Aux)
| 4G LTE compatible
| | Mobile data
| The data modem is a globally certified LTE (4G) type with rollback for legacy standards include 3G/2G/GPRS. The modem covers 14 LTE bands (1 2 3 4 5 7 8 12 13 18 19 20 26 28). Whilst that does not guarantee that the system will operate on every network in all countries, it offers excellent performance and the best global coverage of any product of this type we are aware of at this time. For comparison, a current flagship 2024 Iphone covers 17 LTE bands.
Note that the data modem used was updated in late 2023, the previous modem covered 6 LTE bands (1 2 4 5 8 12), so whilst it still offered global coverage, it was more limited with regards which networks it could be used on. In all cases, please check your networks regional LTE band allocations.
| | Antenna (GPS)
| Dual frequency multi-constellation antenna suitable for operation from 3.3v
|
|
