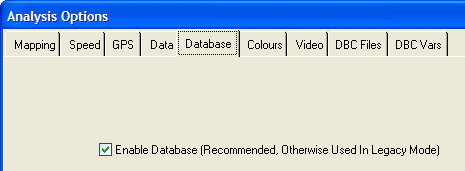

Database Options (available in version 8.0.0+)

This tab contains the options related to the run database.

Enable Database: This option is enabled by default. If you disable this option, "Load data from the database" option will be disabled in the "New session" dialogue shown at the start of the Analysis software.

For more information about use of the database functionality, please check this link: Run Database Introduction .
