Opening the software

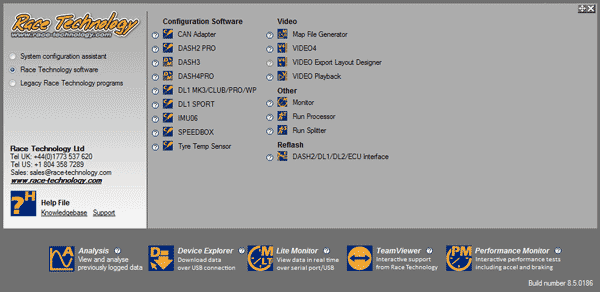

Click on the icon on the desktop to open the software launcher:

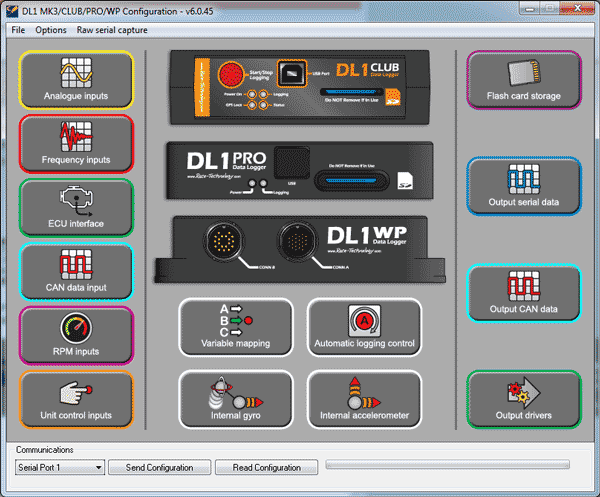

Click on DL1 MK3/CLUB/PRO/WP:

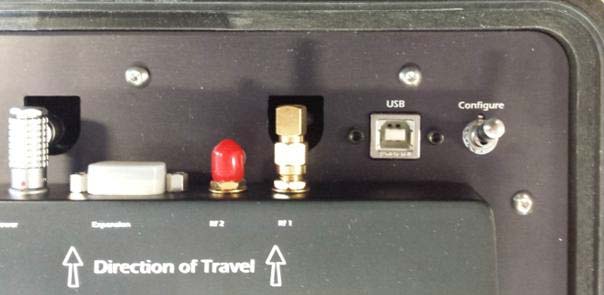

Set the switch inside the peli case to configure:

***Important. Read the configuration before writing to avoid overwriting with default configuration. Select the port connected to the modem and read back configuration wirelessly.
