How do I connect to AiM device?
Compatibility
- AiM Dash Loggers: MyChron4, MyChron5, MXG, MXL, MXL Pista, MXL Pro05, MXL Strada, MXL2, MXS and SoloDL
- AiM Data Loggers: EVO3 Pista, EVO3 Pro, EVO4, EVO4S and EVO5
- AiM Bridges: ECU Bridge
AiM Device Setup
In most cases, the AiM device will be already correctly configured, if it is not working correctly, then please follow the steps below:

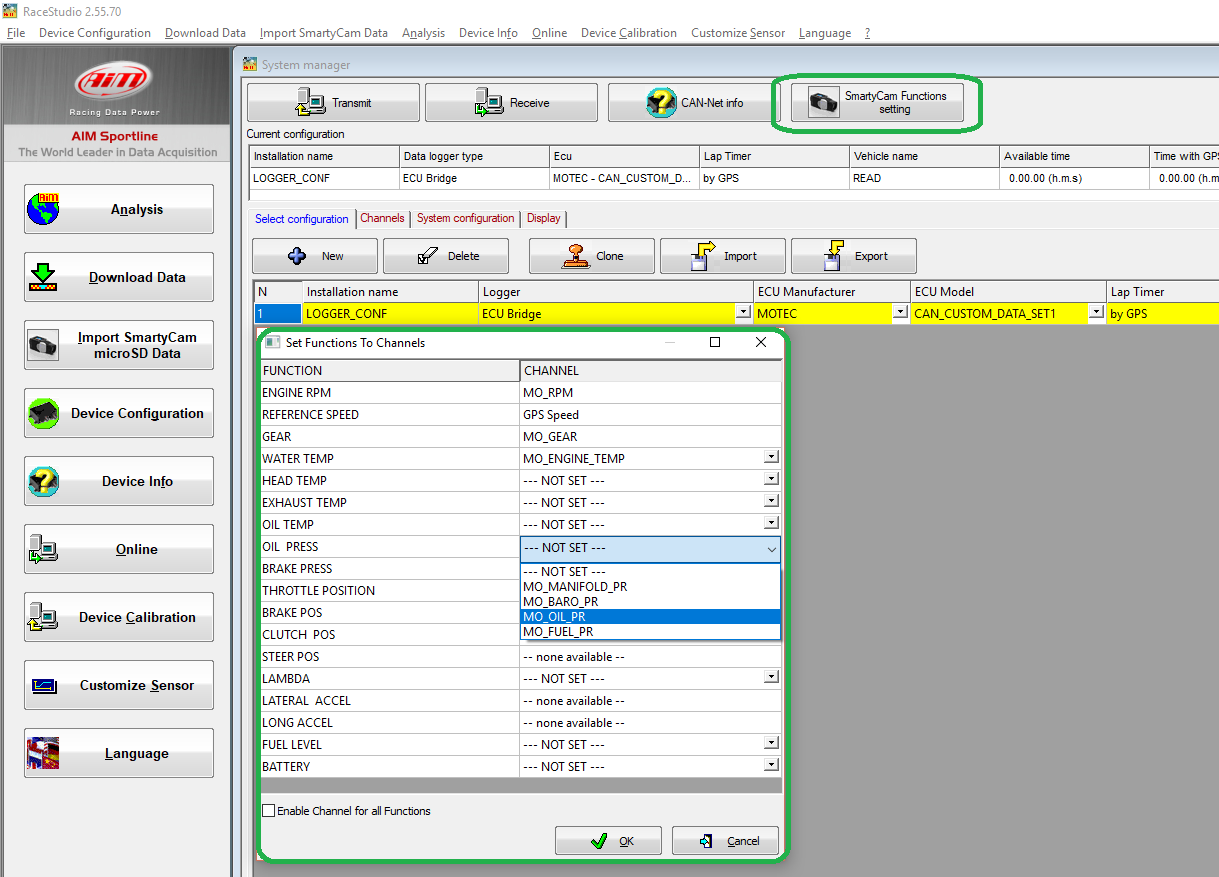

- Connect the compatible AiM device to a PC and depending on the product, open either AiM software program RaceStudio2 or RaceStudio3.
- Ensure the correct vehicle is selected and then click on the 'SmartyCam Stream' tab. This will list all of the standard SmartyCam channels that are transmitted from the AiM device alongside vehicle specific CAN channels which are chosen by the software to match these standard channels.
- Enable all channels available to the AiM from the connected ECU
- ‘Transmit’ to save the configuration to the AiM device.
Connections

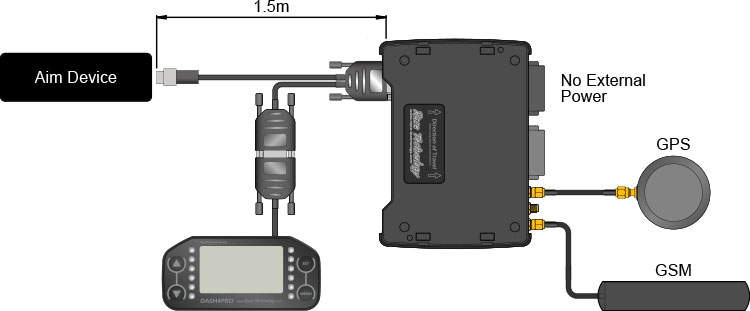

RTLive – Using cable Part: RTLVAiM_1.5M
*** RTLive will be powered via the AiM device and no external power to the RTLive is needed.

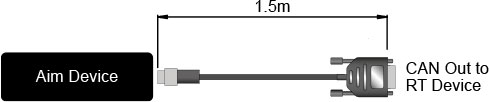

DL1 (Club/Pro/WP) / DL2 / DASH2 pro – Using cable Part: CANAiM_1.5M
Channel listings
Available channels will vary depending on ECU connected to AiM device.
| ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| Engine RPM
| Engine RPM
| RPM
| VAR_0010
| 1 RPM
|
| Ref speed
| aux 2
| Lambda 1 short trim
| VAR_2001
| 0.1 KPH
|
| Gear
| aux 3
| Lambda 2 short trim
| VAR_2002
| -
|
| Water temp
| temperature 8
| Water temp
| VAR_1007
| 0.1c
|
| Head temp
| temperature 25
| Aux 1
| VAR_1024
| 0.1c
|
| Exhaust EGT
| temperature 17
| Exhaust 1 temp
| VAR_1016
| 0.1c
|
| Oil Temp
| temperature 9
| Oil temp
| VAR_1008
| 0.1c
|
| Oil Press
| pressure 2
| Oil pressure
| VAR_3501
| 1mb
|
| Brake Press
| pressure 4
| Water pressure
| VAR_3503
| 1mb
|
| ThrottlePosTPS
| aux 1
| Throttle position
| VAR_2000
| 0.10%
|
| Brake Pos
| aux 4
| Lambda 1 long trim
| VAR_2003
| 0.10%
|
| Steer Pos
| angle 3
| Steering angle
| VAR_3002
| 0.1 degree
|
| Lambda
| misc 1
| Lambda 1
| VAR_4000
| 0.1 lambda
|
| Fuel level
| aux 32
| Auxiliary 32
| VAR_2031
| 0.1 g
|
| Battery
| misc 3
| Battery voltage
| VAR_4002
| 1mv
|
| Clutch Pos
| aux 33
| Auxiliary 33
| VAR_2032
| 0.1 g
|
| Lat acc
| aux 34
| Auxiliary 34
| VAR_2033
| 0.10%
|
| Long acc
| aux 35
| Auxiliary 35
| VAR_2034
| 0.10%
|
