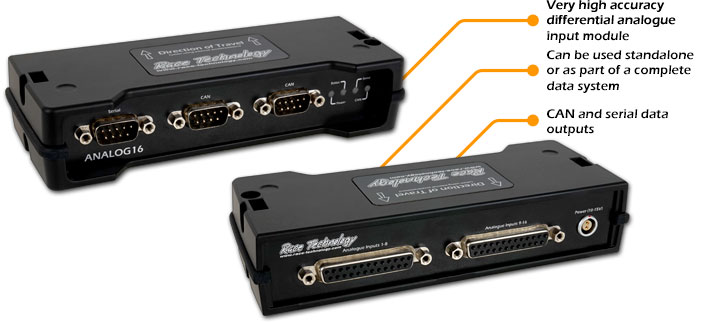

ANALOG16 - 16 channel analogue input module

Product Datasheet



The ANALOG16 is designed for easy integration into a SPEEDBOX Mini/DL2 system. With stacking cases, aligned connectors and power to the unit supplied through the Serial/CAN connections (not requiring a separate power cable when part of a system).

The differential inputs measure -27 to +27V range, each input features its own 5V reference. Reverse polarity protection is provided on all inputs, with resettable fuses.

Data is output over Serial and CAN ports, with fully a configurable CAN output. The supplied configuration software allows individual input smoothing and filtering to be applied, as well as data rates for each input.

Connect any analogue sensors, generate sensor equations (convert volts to temperature/pressure etc) and map data to the desired data channel. Full software suite supplied; configuration, live data monitoring and comprehensive data analysis.
