TemperatureSensors / OilAndWater

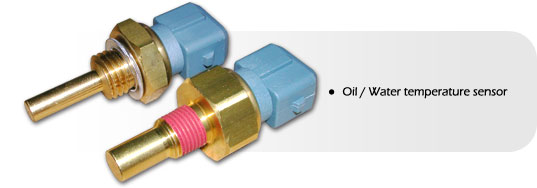

Oil / Water Temperature Sensor

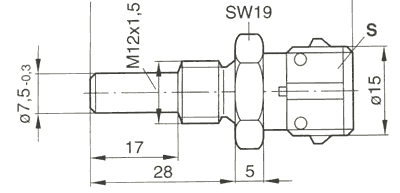

High quality, plastic-sheathed "NTC" type temperature sensor. In a brass housing with 2 thread options: M12 x 1.5mm pitch or 1/8" NPT (which is a tapered American standard). The sensors are about 50mm overall length. Temperature range of -40°C to 130°C. The resistance of the sensor changes with temperature. For direct connection to the DL1 a "pull up resistor" is required. If the sensor is ordered with a cable, this resistor is already included and will be ready for immediate use with the DL1 or DL2 etc.

Measuring Range-10 to +130°C
Nominal Voltage5v
Measured current, max1mA
Thermal time constant44s
Degree of protection (with single conductor sealing)IP64K
Corrosion tested as per DIN 50 018

Design and function

The sensing element of the NTC temperature sensor (NTC = Negative Temperature Coefficient) is a resistor comprised of metal oxides and oxidised mixed crystals. This mixture is produced by sintering and pressing with the addition of binding agents. For automotive applications, NTC resistors are enclosed in a protective housing. If NTC resistors are exposed to external heat, their resistance drops drastically and, provided the supply voltage remains constant, their input current climbs rapidly. This property can be utilised for temperature measurement.

Please note, each 2-pole plug requires 1 plug housing, 2 contact pins and 2 individual gaskets. For automotive applications, original AMP crimping tools must be used.

Connecting the sensor to a data logger (DL1 or DL2) or DASH2

If the sensor has been supplied by Race Technology with a cable attached then wires from the sensors are:

  • Red - Connect to the +5v reference output from the DL1/DL2/DASH2
  • Black - Connect to ground (0v) on the DL1/DL2/DASH2
  • White - Signal output from the sensor, this can be connected to any of the analogue inputs on the DL1/DL2/DASH2

And the sensor can be attached without further complication.

Please note the Bosch temperature sensors, these require an external 1000 ohm resistor to operate. If you have purchased the sensor from us with a cable attached then the resistor will be included and nothing more needs to be done. If you have purchased the sensor without any cable the resistor will need to be added as shown in the diagram below.

Equation to convert from a voltage to a temperature

Note that if you are connecting the sensor to a DASH2, then the equation can be simply selected from the drop down list in the configuration software. Similarly, if the sensor is to be attached to a DL1/DL2 then the equation can be simply selected from the relevant section in the variable manager of the analysis software.
