LiteMonitor / TableAndGraphingMode

Graphing Mode

Main Table

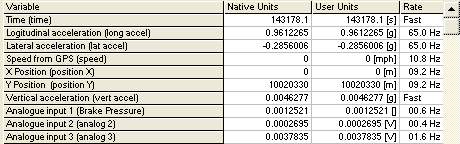

The table that forms the majority of the monitor window displays the information that is being received from the RT product. The far right hand column shows the rate at which the information is being sampled. This may be changed by using the configuration software, although (due to the limitations caused when re-flashing) the number displayed will only ever be an approximation.

The Native Units column represent the raw information that is coming directly form the data logger.

The User Units column displays the information that is converted based on the settings in the default variable file or file you have loaded using the “Load variables” button. The way in which the units are displayed can be altered using the Analysis software. (E.g. The speed can be set to display mph rather than kph; or one of the analogue inputs can be set to act as specific type of sensor)

Looking at a variable in detail

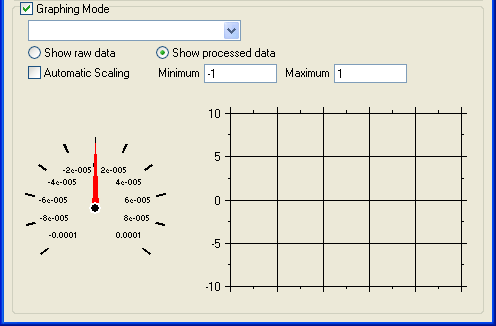

The table, depicted above, shows all of the variables that have been recorded. By clicking on the "Graphing Mode" button, you can access a screen that will allow you to look at one variable in detail.

Select the variable that you wish to view from the drop down menu on the "Graphing Mode" screen.

To view the Raw data as displayed in Native Units column in the main table, select Show Raw data option. To view processed data as displayed in User units column in the main table, select Show processed data option.

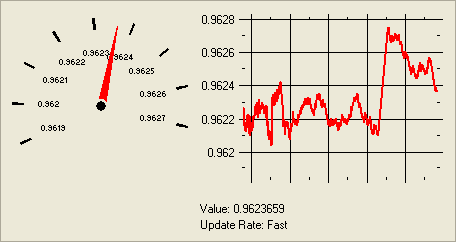

This variable will now be displayed on both the dial and in graph form.

Exiting the Monitor

When you wish to exit the monitor, simply press the disconnect button, and then click on the button, in the top, right hand corner of the screen..
