LayoutControls / Examples

Examples


In this section, you will find three examples of how the analogue dials should be set, depending on your particular requirements.

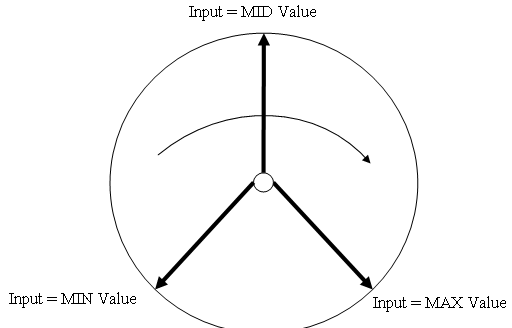

Example 1

Let us assume that a pointer of the following type is required:

  • The angle of the pointer when the input is equal to the max value = 120°
  • The angle of the pointer when the input is equal to the min value = -120°
  • The pointer should move in a clockwise direction as the input variable increases

You should set the properties of the analogue dial as follows:

Min Angle = -120°
Max Angle = +120°


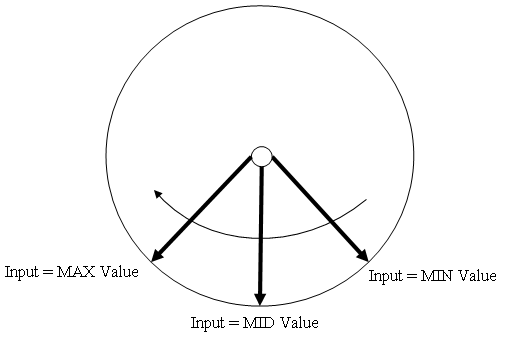

Example 2

Let us assume that a pointer of the following type is required:

  • The angle of the pointer when the input is equal to the max value = -120°
  • The angle of the pointer when the input is equal to the min value = 120°
  • The pointer should move in a clockwise direction as the input variable increases

You should set the properties of the analogue dial as follows:

Min Angle = 120°
Max Angle = 240°

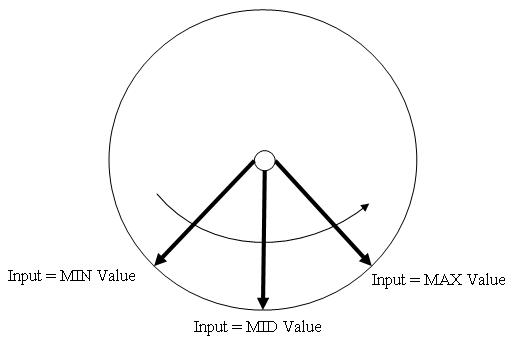

Example 3

Let us assume that a pointer of the following type is required:

  • The angle of the pointer when the input is equal to the max value = 120°
  • The angle of the pointer when the input is equal to the min value = -120°
  • The pointer should move in a clockwise direction as the input variable increases

Set the properties of the analogue dial as follows:

Min Angle = -120°
Max Angle = -240°
