IMU06MK2 / Connections

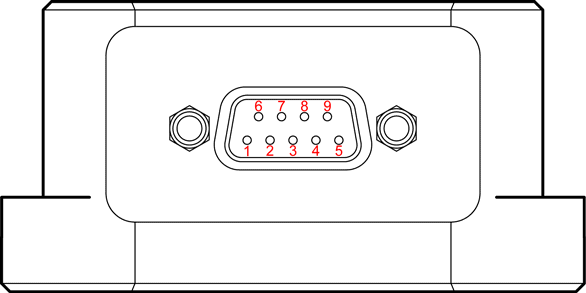

Connector Pinout Details



Connector pinout details
Pin Function
1 calibrate switch

( IP67 version only)

2 RS232 TX
3 RS232 RX
4 NC
5 GND
6 CAN L
7 Power in
8 CAN H
9 Timing signal
